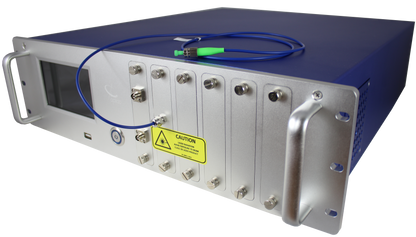

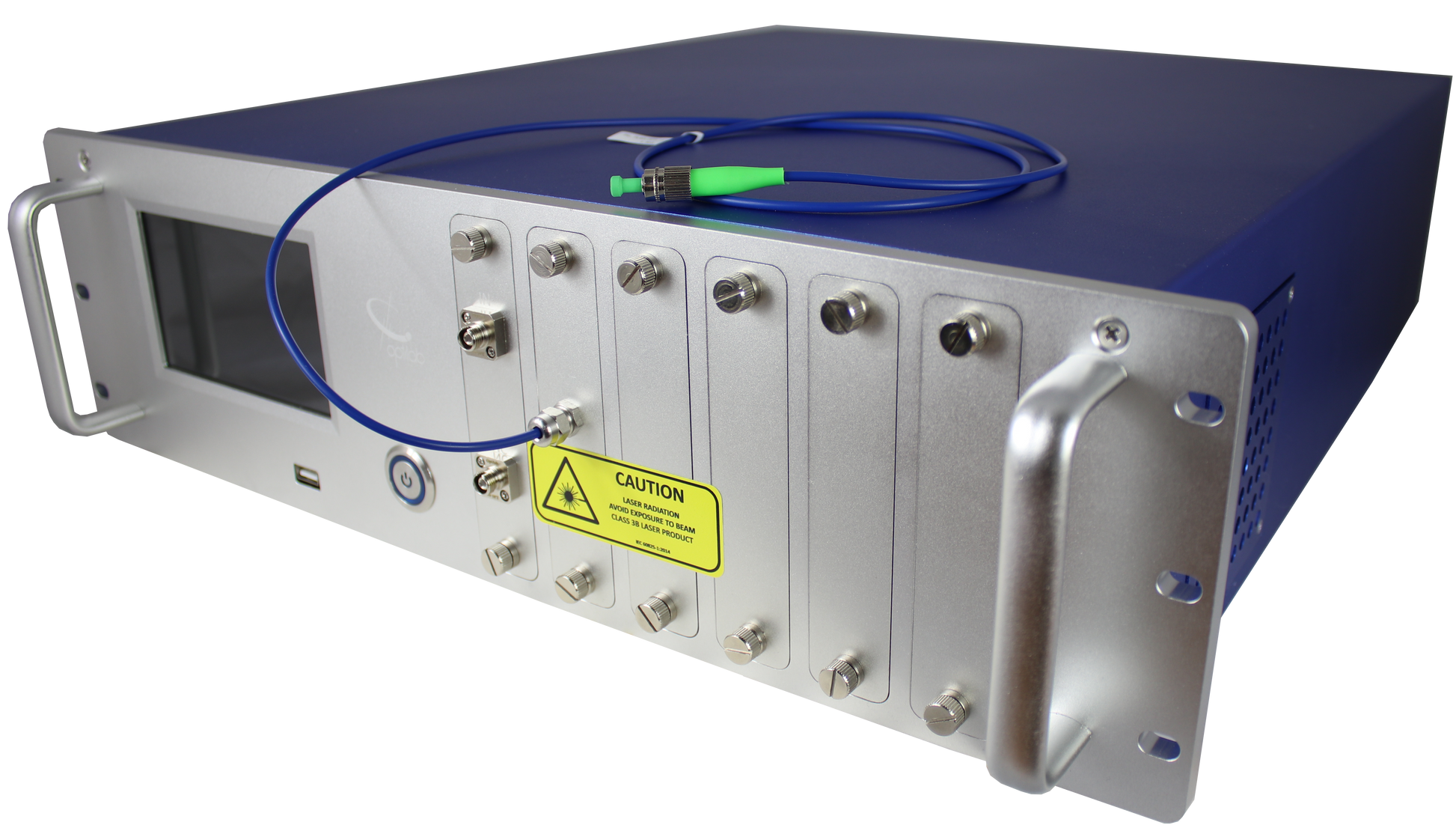

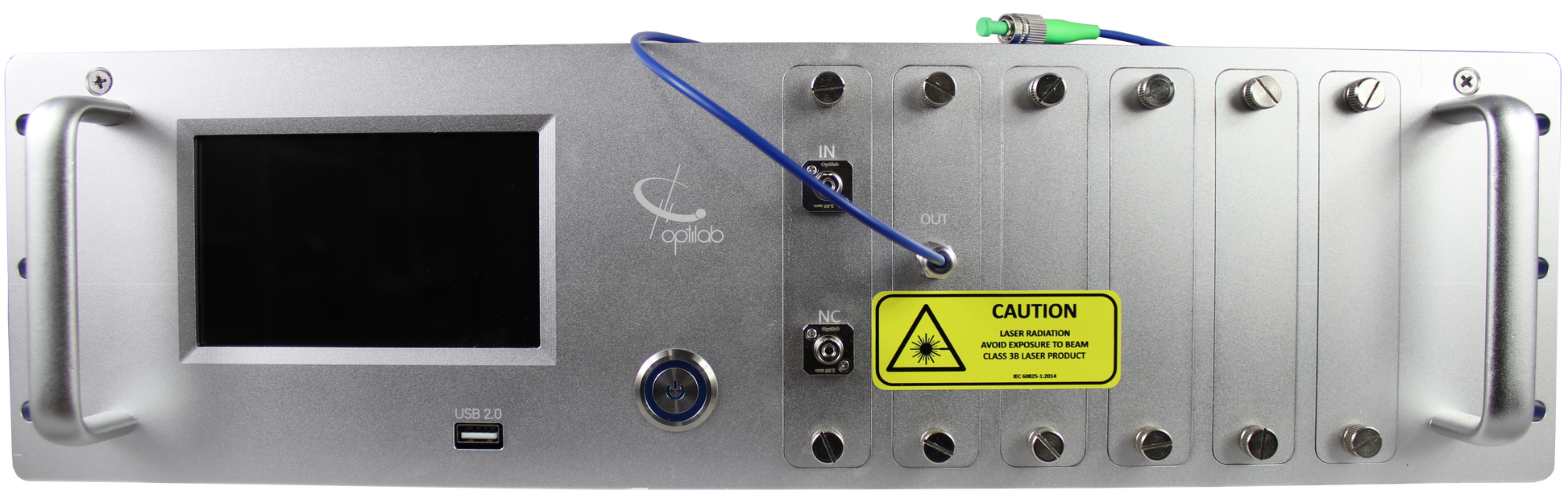

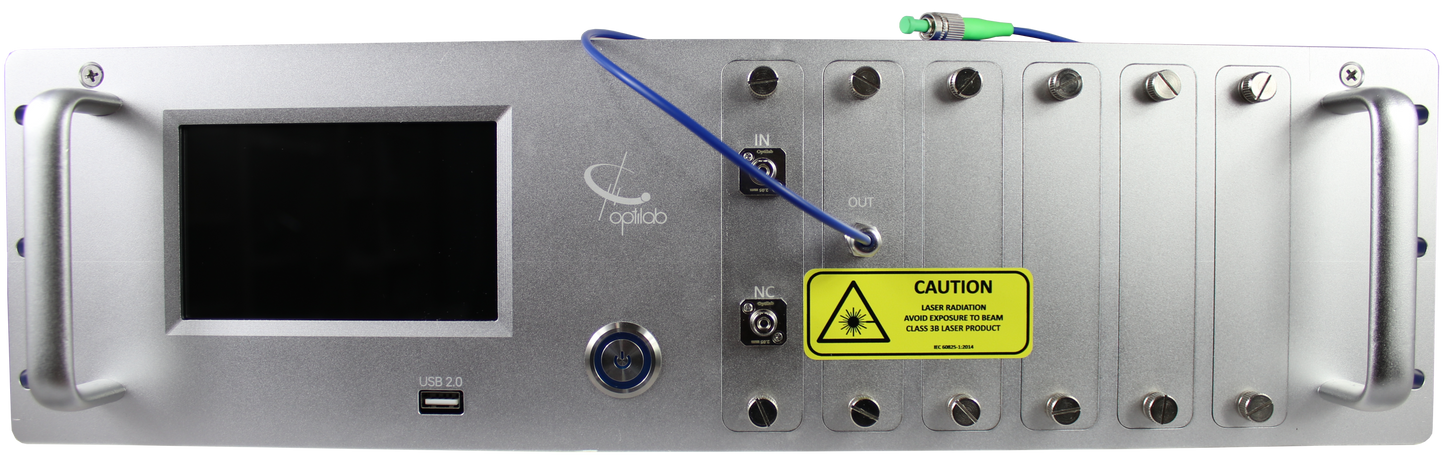

The Optilab EYDFA-PA-XX-PM-R is a high-power, versatile amplifier designed for optical communication and other general-purpose Polarization Maintaining (PM) optical amplification applications. Based on multi-mode pumping Er/Yb double clad fiber technology, EYDFA-PA-XX-PM-R is designed to produce high output power up to 37 dBm. By using a dual stage design, EYDFA-PA-XX-PM-R provides optical gain of up to 50 dB (with optional Pre- Amp), while maintaining low noise figure (NF) of 5 dB. The EYDFA amplifier produces optical output level of +36 dBm with an input power level range from -20 dBm. Featuring adjustable output level power via ACC through the front panel and software control through USB, this compact module housing ideal for OEM integration applications. Contact Optilab for more information.

Features:

• Up to +37 dBm output power • Input power level range: -20 (w/ PA) • Optical gain up to 50 dB (with PA) • 200 W Peak Power (Pulse) mode • PM Output • Automatic Current Control (ACC) standard • LCD digital display and LED status indicators • Software control through USB

Applications:
• Pulsed Laser amplifier • MOPA • Optical Communication • Pulsed Laser amplifier • MOPA • Optical Communication
