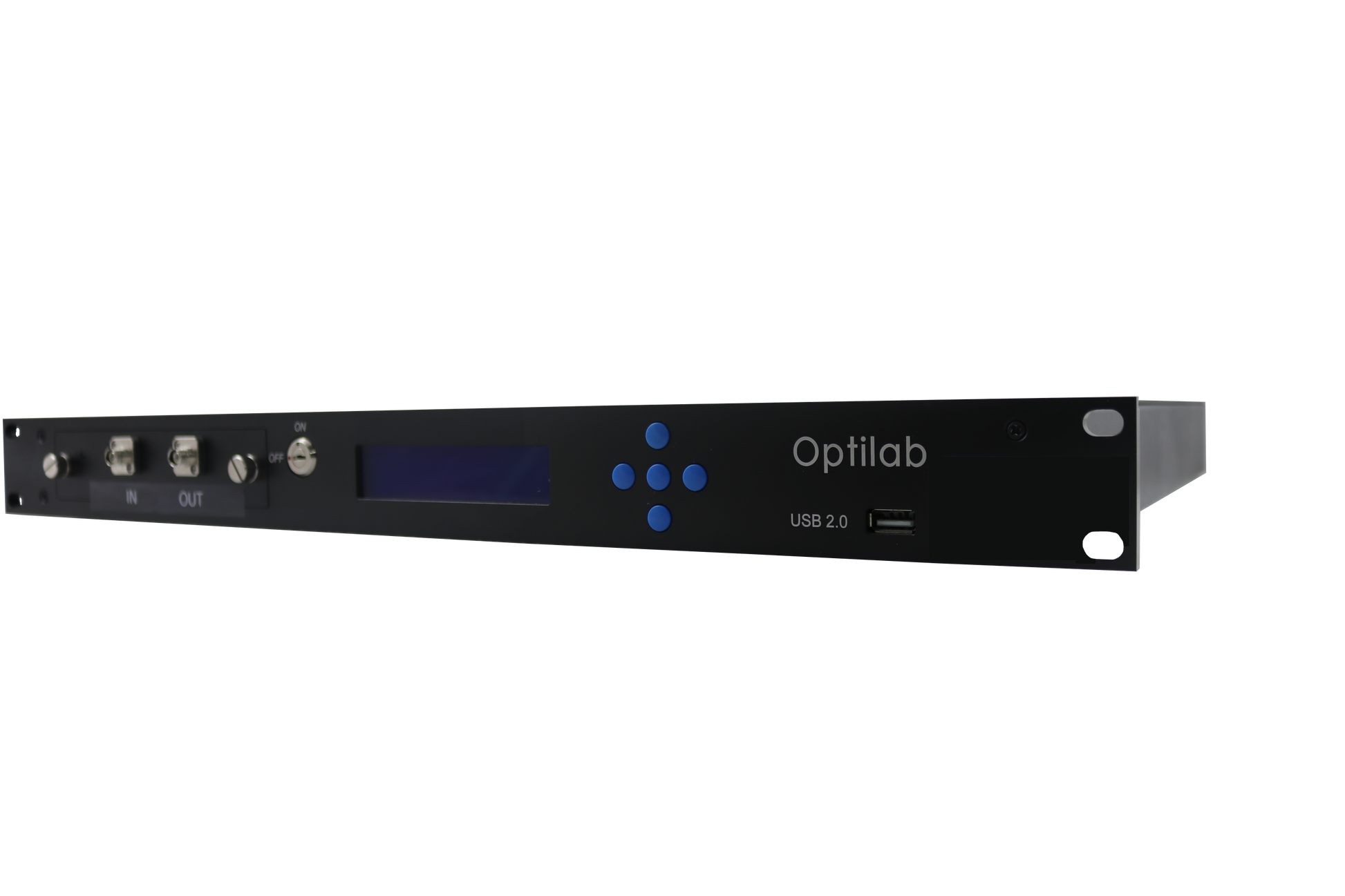

The Optilab YDFA-PA-PM-R is a Polarization Maintaining high-gain Dual Stage Pre-amplifier module in a standard 1U Rackmount housing. It is an easy-to-use and cost-efficient solution for photonic subsystems, and fiber optic system integration. Using a high gain design, this pre-amp module provides over 30 dB gain with a 4.5 dB noise figure, good for input power level as low as -40 dBm. Software control via an a standard TTL RS-232 interface is available for status monitoring and pump current adjustments. It also features pump laser protection and alarms to ensure the reliability and safety of the device. Contact Optilab for more information.

Features:

• RS-232 standard for remote control • Wide wavelength operation range • 25 dB gain • PM Output • Low noise figure • Designed for low input level

Applications:
• Photonic subsystems • Fiber optic link amplification • OEM integration for • DWDM networks • DFC/CATV • RFoG/PON

Datasheet
