optilab

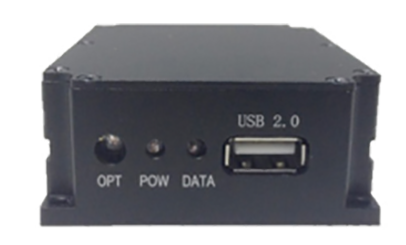

40 GHz Photodiode, Multimode Fiber, Module

40 GHz Photodiode, Multimode Fiber, Module

SKU:PD-40-MM-M-AC

Regular price $2,295.00
Regular price Sale price $2,295.00
Sale Sold out
Coupling

The Optilab PD-40-MM-M is a 40 GHz bandwidth PIN receiver module designed for RF over Fiber, antenna remoting, and broadband RF transmission applications using multimode optical fiber. The PD-40-MM-M can accept input power of up to 10 mW, utilizing a high input power, low distortion PIN photodiode that provides optical to RF conversion out to the frequency range beyond 40 GHz. This compact, cost-effective receiver module can provide users with status monitoring through the use of an on-board processor that communicates to a host computer over an RS-232 I/O interface via a standard USB 2.0 port. When the PD-40-MM-M RF over fiber receiver module is linked with the LT series of RF over fiber transmitter modules, the combination provides an excellent solution for ultra-wideband RF to fiber conversion applications, go to optilab.com for more details.

Features:
➤ Wide bandwidth 60 KHz to 40 GHz
➤ Highly Linear to 10 mW+ input power
➤ Operating Temperature from -10oC to +50oC
➤ Power and Remote Monitoring via USB port
➤ Flat frequency response, ±1 dB
➤ Useful Spectral Range 850 nm -1650 nm

Applications:
➤ Analog RF over Fiber
➤ Optically Amplified Systems
➤ RZ and NRZ up to 40 Gb/s
➤ LIDAR Measurements
➤ Coherent Lightwave Systems
➤ Front-End O/E Converter for Test Instruments
➤ Satcom microwave antenna signal distribution

Datasheet
