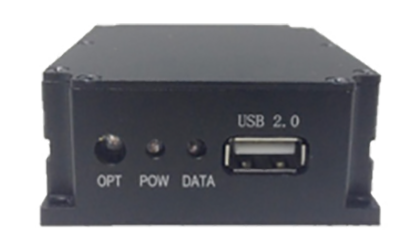

The Optilab PD-30B-M is a 30 GHz photodiode module designed for RF over Fiber, antenna remoting, and broadband RF transmission applications using single mode optical. The PD-30B-M can accept input power of up to 50 mW. The PD-30B-M utilizes a high input power, low distortion PIN photodiode that provides optical to RF conversion out to the frequency range beyond 30 GHz. This compact, cost-effective receiver module can provide users with status monitoring through the use of an on-board processor that communicates to a host computer over an RS-232 I/O interface via a standard USB 2.0 port. When the PD-30B-M RF over fiber receiver module is linked with the LT series of RF over fiber transmitter modules, the combination provides an excellent solution for ultra-wideband RF to fiber conversion applications, go to optilab.com for more details.

 Features:
• Ultra-wide Bandwidth up to 30 GHz
• High Dynamic Range
• High Input Power Handling Capacity of 20 mW
• Highly Linear for Analog Signals Transmission
• No TIA for Intrinsic Phase Linearity
• Status Monitoring: RS-232 (standard)
• Power and Remote Monitoring via USB Port

Applications:
• Wideband RF Transmission over Fiber
• RF/IF Signal Distribution
• Satcom Microwave Antenna Signal Distribution
• EW Systems
• Broadband Delay-line and Signal Processing
• LIDAR Receiver
• Phased and Interferometric Array Antenna

Datasheet



Please contact sales@optilab.com to see availability on B grade PD
