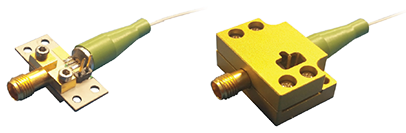

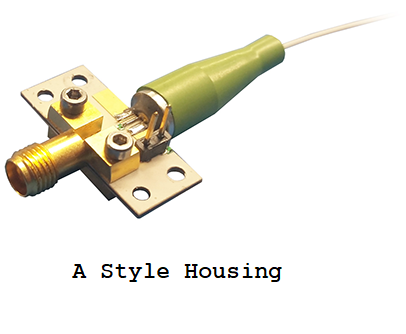

The Optilab PD-30B is a highly linear, 30 GHz bandwidth InGaAs PIN photodetector that is ideal for use in O/E front-ends requiring wide band frequency response. The coplanar waveguide photodiode design optimizes speed and sensitivity for the 1260 nm through 1610 nm wavelength range, and assures a 30 GHz frequency response necessary for digital and analog applications. The front-illuminated mesa-structured PIN design allows a high input power level of up to 30 mW. The PD-30B is available in a standard 2-pin package with SMA or K RF connector output for ease of assembly. Comes with the external protective housing. Contact Optilab for more information.

Features
➤ Bandwidth 60 KHz to 30 GHz

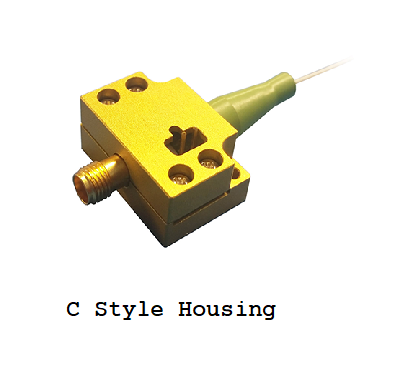

➤ External Housing (C-type)
➤ SMA or K (2.92 mm) Connector
➤ AC Coupling
➤ Highly linear to 30 mW+ input power
➤ Operating temperature from -10 ºC to +60 ºC
TQ Version: -55 °C to +70 °C
➤ Flat frequency response, ±1 dB
➤ Useful spectral range 850 nm -1650 nm

Datasheet

Please contact sales@optilab.com to see availability on B grade PD
