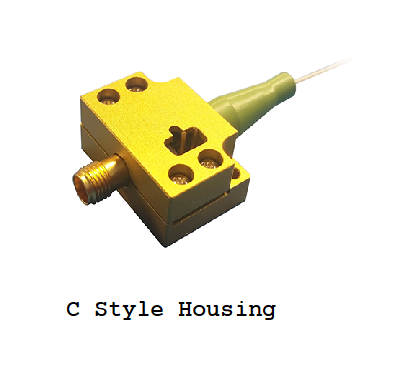

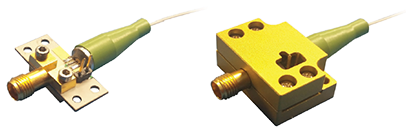

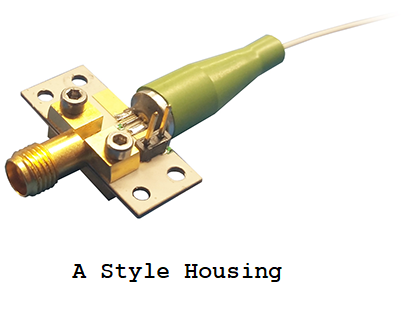

The Optilab PD-30-MM is a highly linear, 30 GHz bandwidth InGaAs PIN photodetector that is ideal for use in O/E front-ends requiring wide band frequency response. The coplanar waveguide photodiode design optimizes speed and sensitivity for the 1260 nm through 1610 nm wavelength range and assures a 30 GHz frequency response necessary for digital and analog applications. The front-illuminated mesa-structured PIN design allows a high input power level of up to 20 mW. The PD-30-MM features 50/125μm fiber type, available in a standard 2-pin package with SMA- or K-connector output for ease of assembly. Contact Optilab for more information.

Features
➤ 50/125 μm multimode fiber input
➤ Bandwidth 60 KHz to 30 GHz
➤ SMA or K (2.92mm) Connector
➤ AC Coupling (DC coupling optional)
➤ Highly linear to 30 mW+ input power
➤ Operating temperature from -10 ºC to +60 ºC
➤ High current handling up to 35 mA
➤ Flat frequency response, ±1 dB
➤ Useful spectral range 850 nm -1650 nm

Application
➤ 30 GHz Analog RF over Fiber
➤ Optically amplified photonics link
➤ RZ and NRZ up to 20 Gb/s
➤ Coherent lightwave systems
➤ Front-End O/E converter for test instrument
