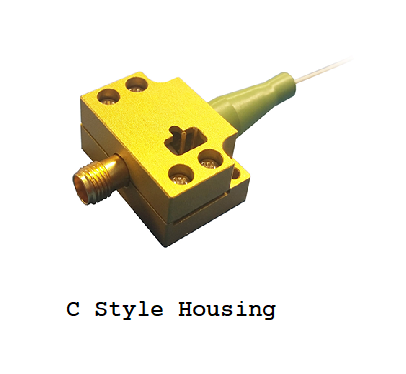

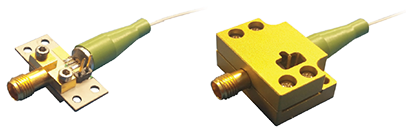

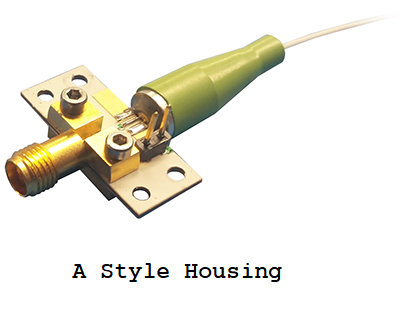

The Optilab PD-23B-A-AC is a highly linear, 23 GHz bandwidth InGaAs PIN photodetector that is ideal for use in O/E front-ends requiring wide band frequency response. The coplanar waveguide photodiode design optimizes speed and sensitivity for the 1260 nm through 1610 nm wavelength range, and assures a 23 GHz frequency response necessary for digital and analog applications. The front-illuminated mesa-structured PIN design allows a high input power level of up to 40 mW. This device is available in a standard 2-pin package with SMA RF connector output for ease of assembly, and can be ordered with or without the external protective housing. Contact Optilab for more information.

Features
➤ Bandwidth 60 kHz to 23 GHz
➤ Operating temperature from -30 ºC to +60 ºC
➤ Flat frequency response, ±1 dB
➤ Useful spectral range 850 nm -1650 nm
➤ Hermetically sealed

Datasheet

Please contact sales@optilab.com to see availability on B grade PD
