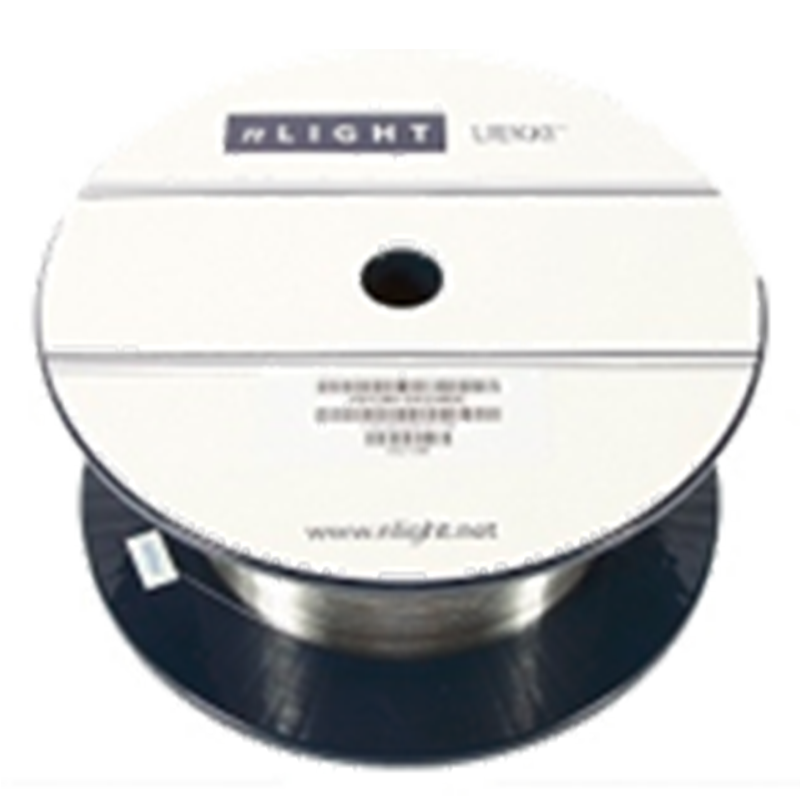

Passive fibers are especially designed and manufactured to match the optical guiding properties of large mode area Ytterbium doped fibers. This enables optimal mode coupling with minimal splice loss for maintaining the power and excellent beam quality between all elements of a fiber laser or amplifier. High-quality Fiber Bragg Gratings can be written into all passive fibers. Passive fibers are available in single cladding, double cladding (DC), single cladding polarization maintaining (PM) and double cladding polarization maintaining configurations.

FEATURES

Realna — Most Accurate Fiber Core Na to Enable Superior Predictability of Fiber Performance and Minimal Splice Loss
Glass Cladding Diameter is Designed to “Fit-in” ℃tagonal Active Fibers
Low Signal and Pump Coupling Losses from Passive to Active Fiber
Single Cladding Fibers Feature a Dual Coated High-index Acrylate Coating
Double Cladding Fibers Feature a Na ≥0.48 Low-index Fluoroacrylate Coating, Which is Proven to Operate Up to 120℃ and in Extreme Humidity.
Fiber Bragg Gratings can be Written into All Large Mode Area Passive Fibers

USE IN

Pigtails for Fiber Lasers and Amplifiers
All-fiber Subassemblies
High-brightness Power Delivery
Fiber-based Components for Fiber Lasers (e.g. Pump Combiners; FBGs)

Lead Time: 4-6 Weeks
Datasheet
