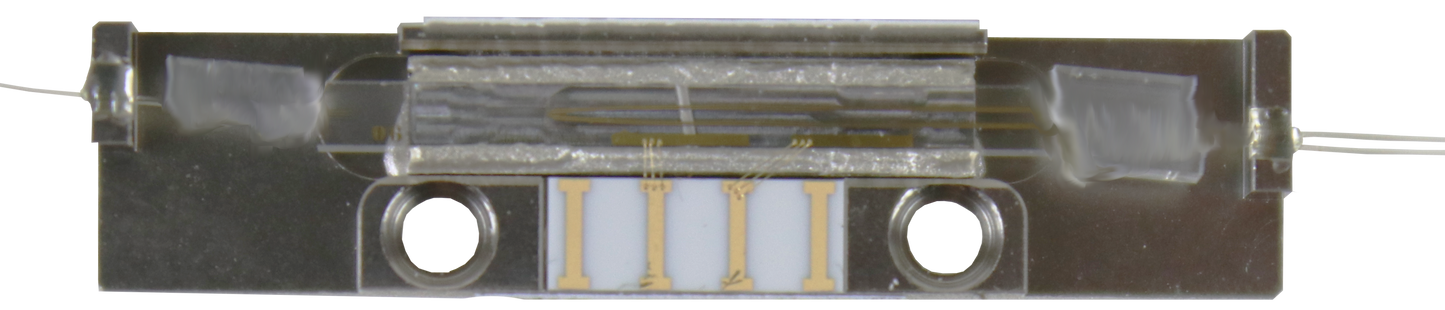

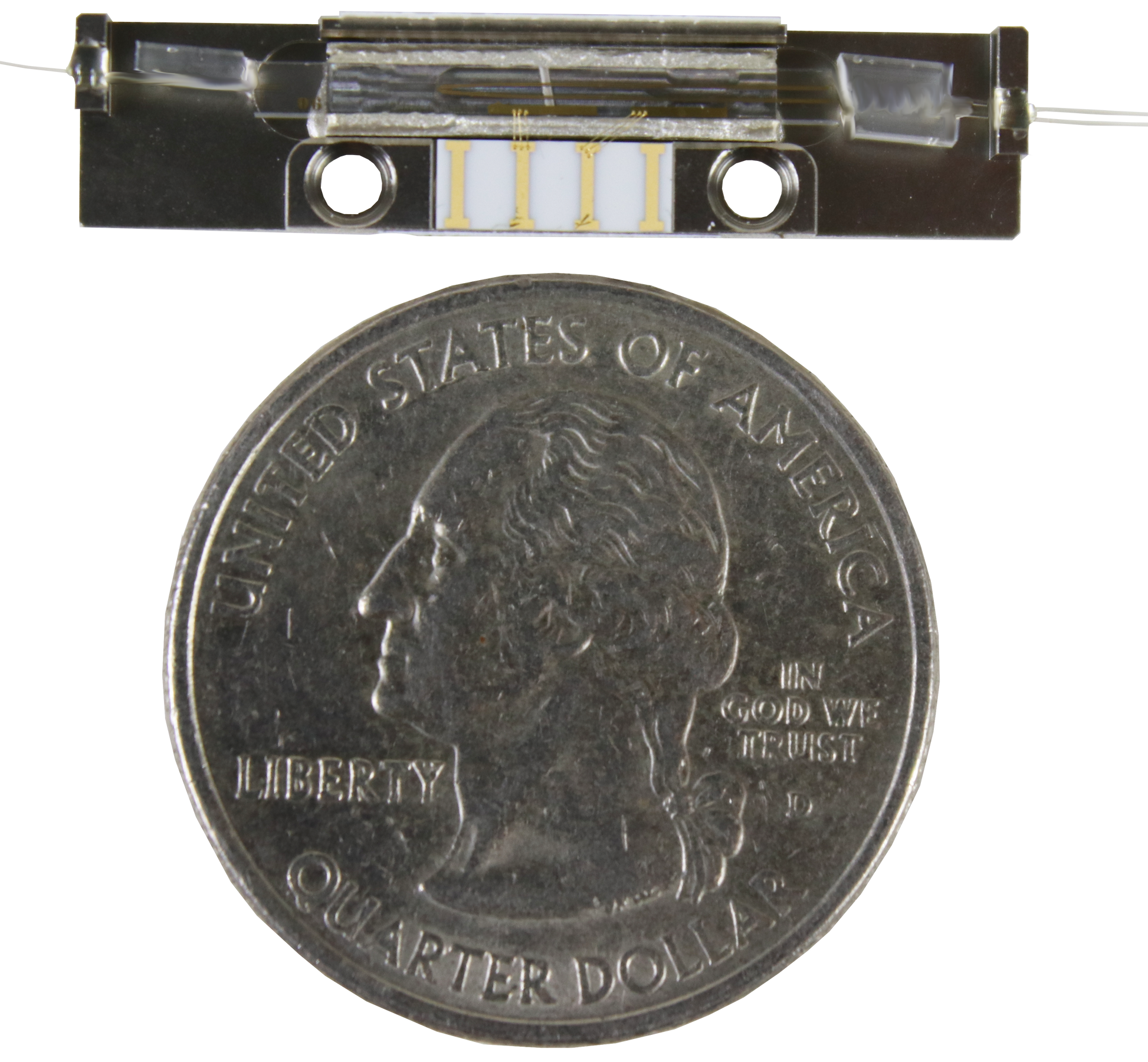

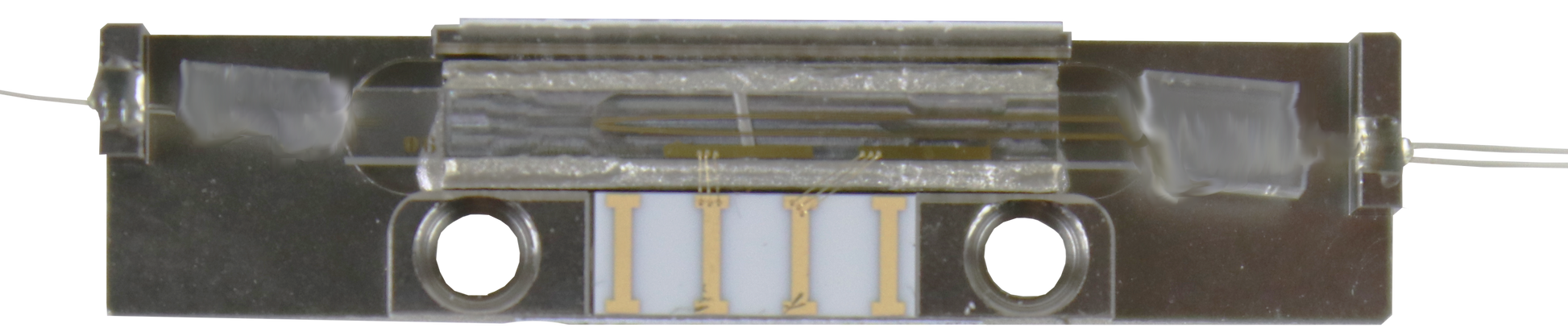

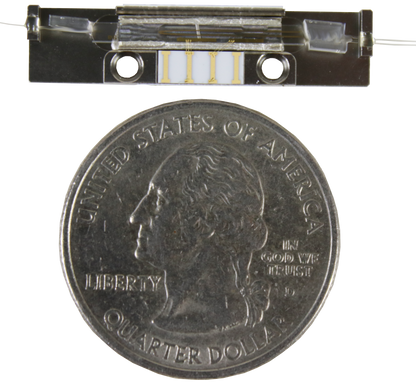

The Optilab MIOC-1550-18-SP is the key component of Fiber Optic Gyroscope (FOG) for rotational rate sensing and inertial navigation systems. This Integrated Optic Chip (IOC) device is composed of a polarizer, a Y-junction coupler and dual electro optic phase modulators. Based on Lithium Niobate (LiNbO3), MIOC-1550-18-SP is fabricated with Annealed Proton Exchange (APE) optical waveguides. The MIOC-1550-18-SP features Polarization Extinction Ratio (PER) exceeding 60 dB that can minimize bias drift which results from polarization crosstalk induced non-reciprocity. The MIOC-1550-18-SP assures high reliability and performance over wide temperature range and is fiber pigtailed (input/output) with a variety of PM fiber configurations. Contact Optilab for more information.

Volume pricing available, as well as customization upon request, please contact Optilab for more details.

Features:
• 1550 ± 20 nm operation
• Low insertion loss
• Polarization extinction ratio > 60 dB
• Low Vπ voltage
• Low Polarization crosstalk
• PM fiber pigtails

Applications:
• Fiber Optic Gyroscope (FOG)
• Fiber Optic Current Sensor (FOCS)
• Hydrophone and other optic sensitive fields
• Research and development
