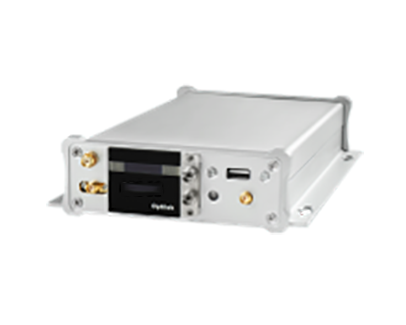

The Optilab LRC-40x-PA is a 40 GHz + Lightwave Receiver module with integrated pre-amplifier designed for RF over Fiber, antenna remoting, and broadband RF transmission applications using single mode optical. The LRC40x-PA utilizes an EDFA to send amplified signal directly to photodetector for low noise amplification and a high linearity. LRC-40x-PA can detect input power level as low as -40dBm. This cost-effective receiver module can provide users with status monitoring through OLED status display that communicates to a host computer over an RS-232 I/O interface via a standard USB 2.0 port. When the LRC-40x-PA RF over fiber receiver module is linked with the LTC series of RF over fiber transmitter modules, the combination provides an excellent solution for ultra-wideband RF to fiber conversion applications. Contact Optilab for more information.

Features:
- Bandwidth 60 KHz to 43 GHz
- High Dynamic Range
- Low Input Power Level : -40dBm to -15dBm
- AC 110V to 240V Power
- Integrated EDFA
- OLED Status Display
- Highly Linear for Analog Signals Transmission

Applications:
- EW Systems
- Broadband Delay-line and Signal Processing
- LIDAR Receivers
- Phased and Interferometric Array Antenna
- Wideband RF Transmission over Fiber
- RF/IF Signal Distribution
- Satcom Microwave Antenna Signal Distribution
- 5G Antenna to Base Station
