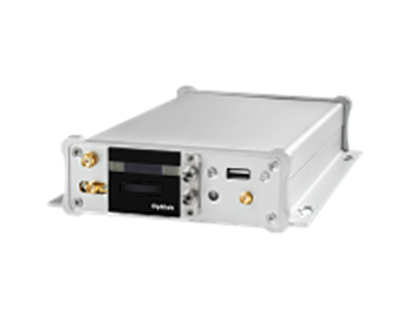

Lightwave Receiver for 5G Wireless Link, C-band, 30 GHz

Lightwave Receiver for 5G Wireless Link, C-band, 30 GHz

SKU:LRC-30

Regular price $2,152.00
Regular price Sale price $2,152.00
Sale Sold out

The Optilab LRC-30 is a 30 GHz Lightwave Receiver module designed for RF over Fiber, antenna remoting, and broadband RF transmission applications using single mode optical. The LRC-30 can accept input power of up to 35 mW. The LRC-30 utilizes a high input power, low distortion PIN photodiode that provides optical to RF conversion out to the frequency range beyond 30 GHz. This cost-effective receiver module can provide users with status monitoring through OLED status display that communicates to a host computer over an RS-232 I/O interface via a standard USB 2.0 port. When the LRC-30 RF over fiber receiver module is linked with the LTC series of RF over fiber transmitter modules, the combination provides an excellent solution for ultra-wideband RF to fiber conversion applications. Contact Optilab for more information.

Features:
- Bandwidth 60 KHz to 30 GHz
- High Dynamic Range
- High Input Power Handling Capacity of 35 mW
- AC 110V to 240V Power
- No TIA for Intrinsic Phase Linearity
- OLED Status Display
- Highly Linear for Analog Signals Transmission

Applications:
- EW Systems
- Broadband Delay-line and Signal Processing
- LIDAR Receivers
- Phased and Interferometric Array Antenna
- Wideband RF Transmission over Fiber
- RF/IF Signal Distribution
- Satcom Microwave Antenna Signal Distribution
- 5G Antenna to Base Station
