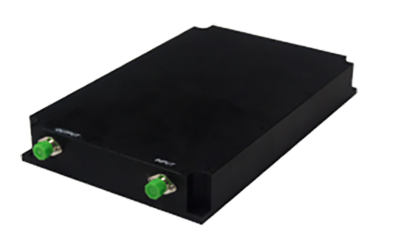

Low Noise, High Gain Pre-Amp EDFA Module, 40 dB Wideband Gain

The Optilab EDFA-PA-LN-W-M Pre-Amp EDFA is a Dual Staged low noise with wideband filter and high-gain module for amplifying low input level signals that is an easy-to-use and cost-efficient solution for photonic subsystems, OEM integration, free space communication, and satellite/ground link. Using a dual stage design, this module provides over 50 dB gain with maximum 4.5 dB noise figure and is designed to amplify signal with a low input level as low as -50 dBm. Software control is standard via an RS-232/485 port for status monitoring and pump laser protection are designed to ensure the reliability of the device. The EDFA-PA-LN-W-M requires a single ±5 Volt DC power supply for operation. Due to low-noise filter, it is the best for the user to specify operating wavelength before proceeding order. Contact Optilab for more information.

Features:
• Optical gain up to 40 dB
• Low noise figure<4.5 dB
• Low input level to -50 dBm
• RS-232/485 for remote control
• Wide wavelength range
• Single 5 V power supply required (Not Included)
