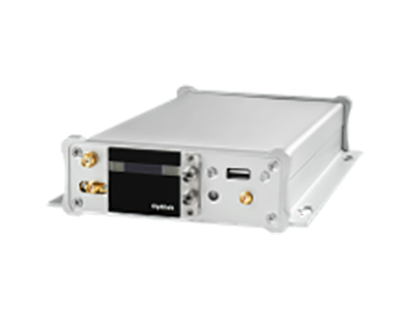

The Optilab LTR-12 series of wideband laser transceivers is designed for RF over Fiber (RFoG), optical link, microwave over fiber applications. It features a high-linearity optical link for RF over fiber up to 12 GHz or 17 Gb/s digital link. Based on our proprietary design, the LTR-12 incorporates a broadband optical transmitter and linear receiver into one compact module. Using a Optilab IMP-1550-12 modulator, the LTR-12 transmit port converts input microwave/RF signals to optical waveform linearly from frequency range 60 kHz up to 12 GHz. With a broadband linear PIN receiver, LTR-12 receive port converts the optical waveform back to RF/microwave signals with minimal distortion. The LTR-12 maintains excellent gain flatness in wide frequency range.

Features:
- Design for 5G Wireless Signal Relay
- Highly Linear for Analog Transmission
- Transmitter Receiver Fully Integrated
- Wide Bandwidth Optical Modulator
- Compatible with HFC/CATV Networks
- 5.8 GHz/28 GHz/40 GHz Link

Applications:
- 5G Antenna to Base Station
- RF over Fiber (RFoF) in HFC
- Analog Photonics
- Microwave Link
- Satellite Communication
