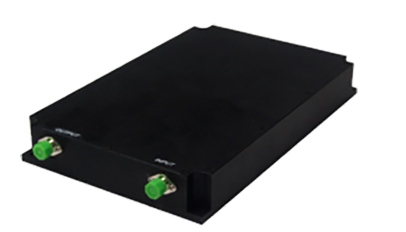

L-band Pre-Amp EDFA Module, +14 dBm 25 dB Gain
L-band Pre-Amp EDFA Module, +14 dBm 25 dB Gain
SKU:EDFA-PA-L-M
Regular price
$5,460.00
Regular price
Sale price
$5,460.00
Unit price
/
per
Couldn't load pickup availability
The Optilab EDFA-PA-L-M Pre-Amp EDFA is a module for amplifying low input level signals that is an easy-to-use and cost-efficient solution for photonic subsystems, OEM integration, and fiber optic system integration. Using a high gain design, this module provides over 25 dB gain with a 4.5 dB noise figure and is designed to amplify signal with a low input level as low as -40 dBm. Software control is standard via an RS- 232 port for status monitoring and pump current adjustments, and pump laser protection and alarms are equipped to ensure the reliability and safety of the device. The EDFA-PA-L-M requires a single ±5 Volt DC power supply for operation that comes included with each unit. Contact Optilab for more information.
Feature:
• High gain of more than 25 dB
• Low noise figure
• Designed for low input level
• RS-232 standard for remote control
• Wide wavelength operation range
• ±5 V power supply (not included)
• 10+ years of operation life
Feature:
• High gain of more than 25 dB
• Low noise figure
• Designed for low input level
• RS-232 standard for remote control
• Wide wavelength operation range
• ±5 V power supply (not included)
• 10+ years of operation life
