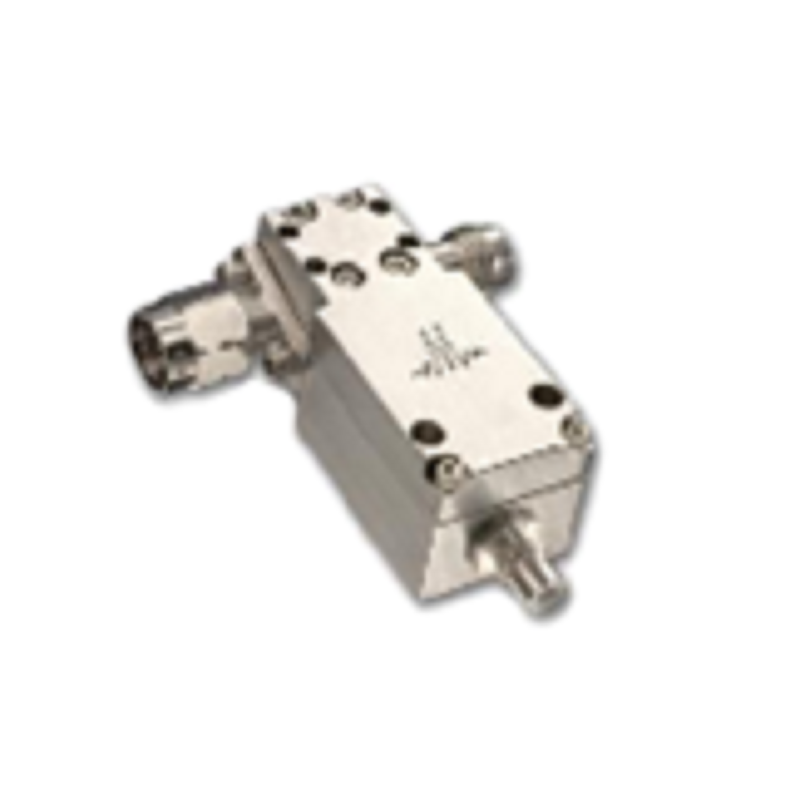

The bias tee offers the ability to apply or detect a DC voltage on a high frequency signal. Using a custom-made, resonance-free conical inductor to achieve extremely broadband performance. By minimizing the overall inductor size and using proprietary packaging techniques, the BT2004 is a superior option in terms of performance, reliability and ease-of-use when compared to cumbersome user-designed bias tees employing off-the-shelf conical inductors.

FEATURES

Broadband: 200 kHz to 40 GHz
Low Insertion Loss
High Power
Non-Resonant
Compact Size

USE IN

Wideband Amplifier
Fiber Optic Communication
Laser Driven
Optical Modulator Drive
GPS Active Antenna
Other Test Measurements

Lead Time: 2-3 Weeks
