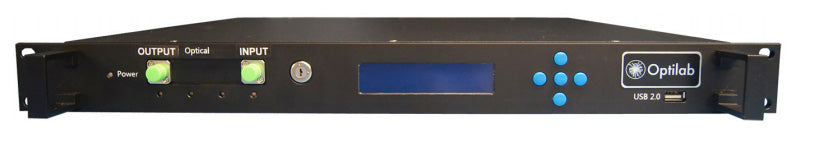

Erbium Ytterbium Doped Fiber Amplifier, Up to 37 dBm, Rackmount

The Optilab EYDFA-XX-R Erbium Ytterbium Doped Fiber Amplifier (EYDFA) is a high-power, versatile amplifier designed for MOPA, optical communication and other general-purpose optical applications. Based on multi-mode pumping Er/Yb double clad fiber technology, EYDFA-XX-R is designed to produce high output power up to 37 dBm. By using a dual stage design, EYDFA-XX-R provides optical gain of up to 50 dB (with optional Pre- Amp), while maintaining low noise figure (NF) of 5 dB. The EYDFA-XX-R amplifier produces optical output level of +37 dBm with an input power level range from -3 dBm to +7 dBm. Featuring adjustable output level power via ACC through the front panel and software control through USB. Contact Optilab for more information.

Features:

• Two Stage Amplifiers Design • Input power level range: -3 dBm to +7 dBm • Automatic Current Control (ACC) standard • LCD digital display and LED status indicators • Up to +37 dBm output power • Optical gain up to 50 dB • Software control through USB

Applications:

• General-purpose optical amplifier • MOPA • Optical Communication • Test and measurement
