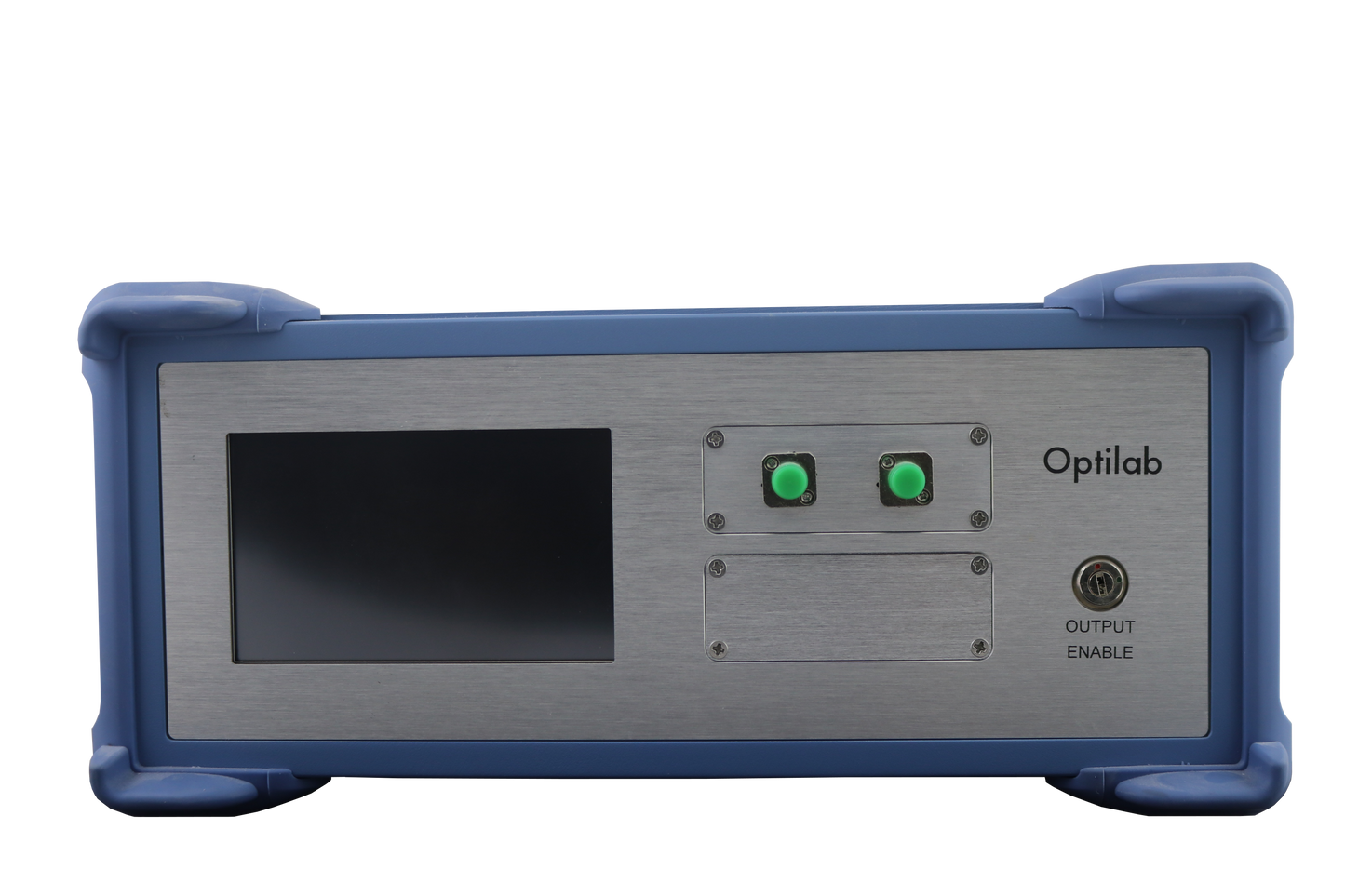

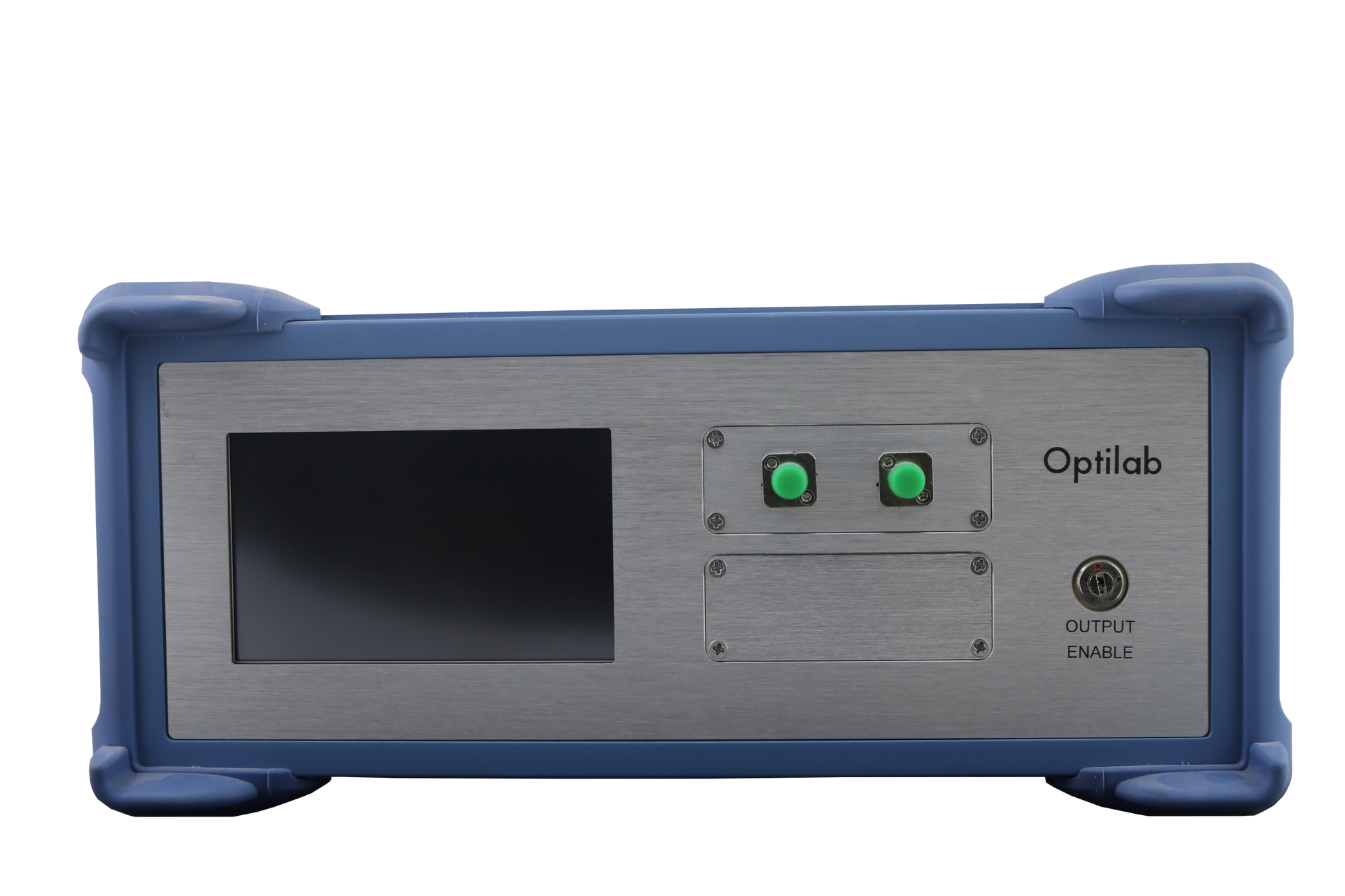

Dual Stage Erbium-Doped Fiber Amplifier, C-Band, Benchtop

The Optilab EDFA-C-XX-B Erbium-Doped Fiber Amplifier (EDFA) is a dual pump, versatile amplifier designed for optical communication and other general-purpose optical applications. By using a dual pump laser (980nm & 1480nm) amplifier design with high efficiency, EDFA-C-XX-B provides optical gain up to 35 dB, while maintaining low noise figure (NF) of 5 dB. The EDFA-C-XX-B amplifier produces optical output levels up to +26 dBm with an input power level range from -12 dBm to +7 dBm. This product features adjustable output level power via ACC through the front panel and software control through USB. Contact Optilab for more information.

Features:

• Up to +26 dBm output power • Dual Pump Design • Optical gain up to 35 dB • Input power range: -12 dBm to +7 dBm • Automatic Current Control (ACC) • Software control through USB

Applications:

• Optical Communication • Test and measurement • Pulse Amplification • General-purpose optical amplifier
