DFB Laser Diode, 1510 nm, 5 mW, Single Mode, Dual in-line (1505 – 1512nm)

DFB Laser Diode, 1510 nm, 5 mW, Single Mode, Dual in-line (1505 – 1512nm)

SKU:DFB-1505-DL

Regular price $415.00
Regular price Sale price $415.00
Sale Sold out
Wavelength

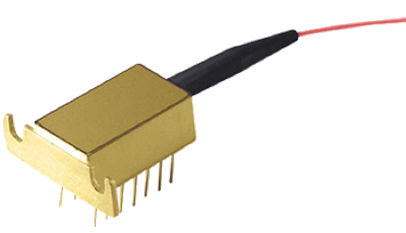

The Optilab DFB-1510-DL Single Mode Dual in-line DFB laser is a cost effective 1505nm – 1512nm range wavelength laser source. The MQW DFB laser features 5 mW min. of output optical power, high Side Mode Suppression Ratio (SMSR), low residual chirp, and a built in thermoelectric cooler, thermistor, and rear-facet monitor photodiode for external optical power control. Contact Optilab for more information.

Features:

• Up to 2 GHz analog bandwidth
• 5 mW output power min.
• Built-in TEC, Thermistor & Monitor PD
• Side Mode Suppression Ratio 40 dB

Applications:

• Analog link up to 2 GHz bandwidth
• 3 Gb/s digital communication
• CW 1505 - 1512 nm laser source
• Directly modulated optical link
