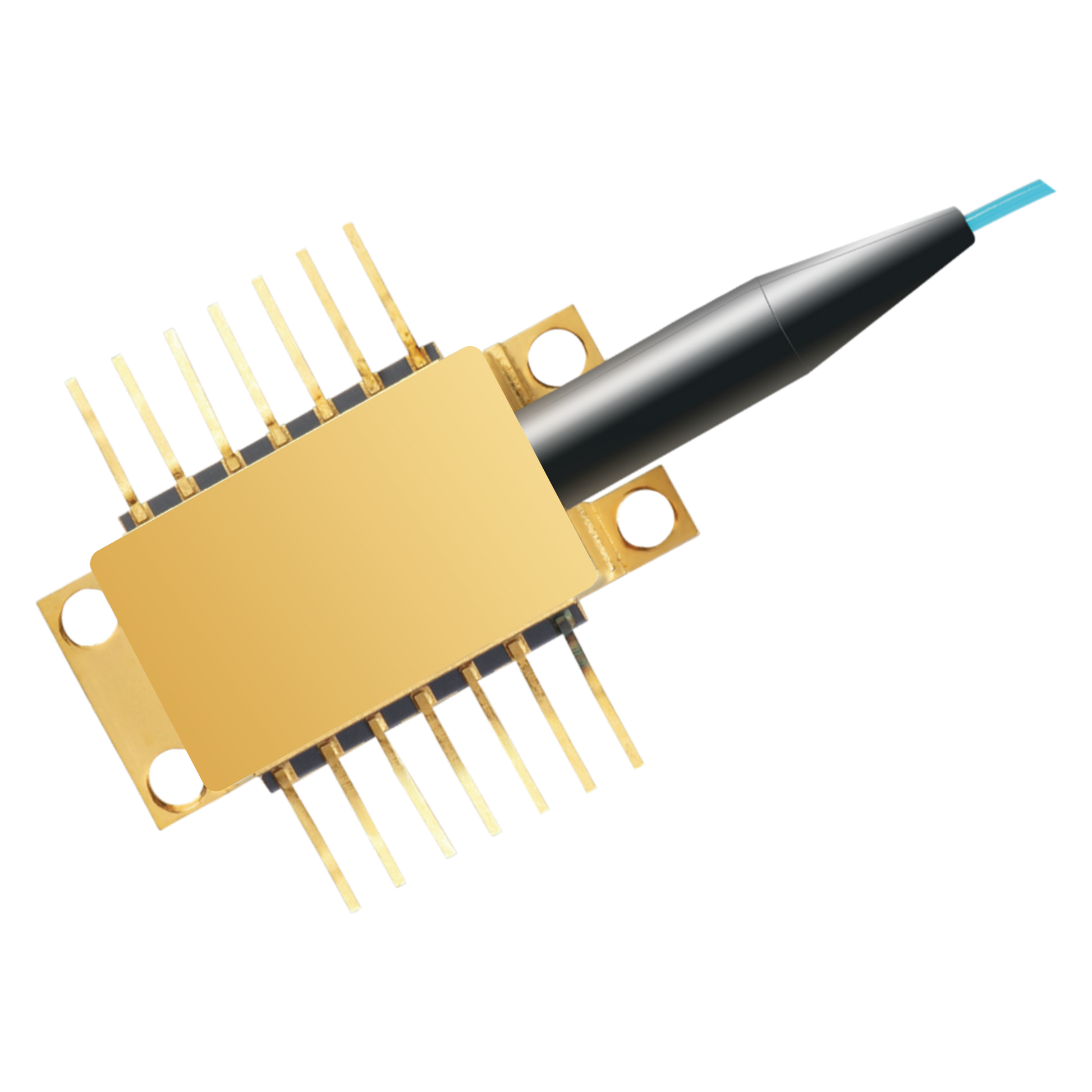

The Optilab DFB-1310H-PM is a single frequency laser coupled with Polarization Maintaining fiber. Built with Distributed Feed-Back Grating (DFB) as cavity reflector, it provides pure, single longitudinal mode, hopping free and extremely stable wavelength source. This laser diode is fabricated with Multiple Quantum Well (MQW) for excellent reliability and stability. It can be used either in CW operation for seeding the external modulation and coherence interferometry, or directly modulated for signal transmission. This MQW DFB laser features 150 mW of output optical power, high Side Mode Suppression Ratio (SMSR). The standard 14-pin butterfly integrates TEC, thermistor, monitor PD and an output isolator.

FEATURES

Up to 150 mW Output Power
Built-in Isolator
Polarization Maintained Fiber Output
Built-in TEC, Thermistor & Monitor PD
Side Mode Suppression Ratio 45 dB
Zero Chromatic Dispersion

USE IN

Stabilized Single Frequency Laser Source
Light Laser Source for Interferometer
PM Pulse Laser Source
External Modulation Optical Link

Lead Time: 2 Months

Datasheet
