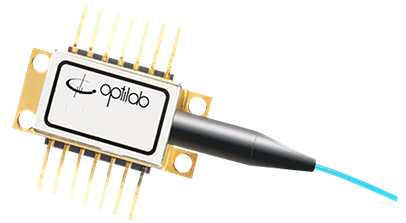

The Optilab DFB-1310C-PM is a single frequency CW laser coupled with Polarization Maintaining fiber. Built with Distributed Feed-Back Grating (DFB) as cavity reflector, it provides pure, single longitudinal mode, hopping free and extremely stable wavelength source. This laser diode is fabricated with Multiple Quantum Well (MQW) for excellent reliability and stability. It can be used either in CW operation for seeding the external modulation and coherence interferometry, or directly modulated for signal transmission. This MQW DFB laser features 200 mW of output optical power, high Side Mode Suppression Ratio (SMSR). The standard 14-pin butterfly integrates TEC, thermistor, monitor PD and an output isolator. Mode hop free version available upon request. Contact Optilab for more information @ 602-343-1496.

Features:
➤1270/1290/1310/1330 nm Available
➤Mode hop free version available
➤Up to 200 mW output power
➤Built-in Isolator
➤CW Laser
➤Polarization maintained Fiber Output
➤Built-in TEC, Thermistor & Monitor PD
➤Side Mode Suppression Ratio 45 dB
➤Zero Chromatic Dispersion

Applications:
➤PM pulse laser source
➤Stabilized Single Frequency Source
➤Light Source for Interferometer
➤CW 1310 nm laser source
➤External modulation optical link
