Tunable VCSEL 1544-1577 nm, Single Mode with built-in TEC

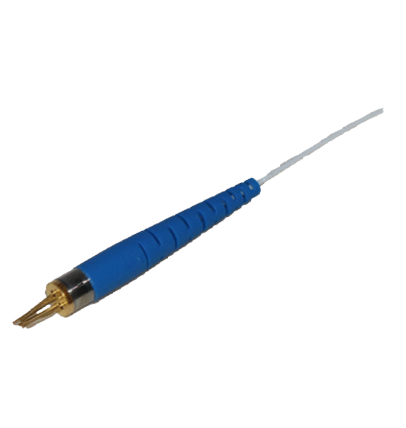

The Optilab VCSEL-XXXX-T-SM is a wavelength tunable Vertical Cavity Surface Emitting Laser (VCSEL) diode. Utilizing a MEMS based tuning capacity, its peak wavelength can be tuned over 10 nm at 100 kHz. VCSEL-XXXX-T-SM is designed for fiber sensing, laser transmitter and optical communication applications. It also integrates an internal TEC and optical isolator for stable single mode output. Contact Optilab for more information.

Features:

• 10 nm Wavelength Tuning Range
• 100 kHz Wavelength Turning Speed
• Mode Hopping Free Tuning
• Integrated TEC and Optical Isolator
• Single Mode Output
• 1 mW CW Output Power
• Small Footprint (TO-56)
• 10 Gb/s Direct Modulation

Applications:

• OCT Imaging
• 1544 ~ 1577 nm Optical Communications
• RFoF
•FBG Sensing
• LIDAR

1544 nm Datasheet

1550 nm Datasheet

1556 nm Datasheet

1565 nm Datasheet

1567 nm Datasheet

1577 nm Datasheet
