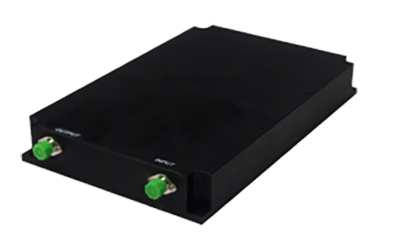

C-band Pre-Amp EDFA Module, +14 dBm, 25 dB Gain

The Optilab EDFA-PA-C-M Pre-Amp EDFA is a module for amplifying low input level signals that is an easy-to-use and cost-efficient solution for photonic subsystems, OEM integration, and fiber optic system integration. Using a high gain design, this module provides over 25 dB gain with a 4.5 dB noise figure and is designed to amplify signal with a low input level as low as -40 dBm. Software control is standard via an RS- 232 port for status monitoring and pump current adjustments, and pump laser protection and alarms are equipped to ensure the reliability and safety of the device. The EDFA-PA-M requires a single ±5 Volt DC power supply for operation that comes included with each unit. Contact Optilab for more information.

Features:
• High gain of more than 25 dB
• Low noise figure
• Designed for low input level
• RS-232 standard for remote control
• Wide wavelength operation range
• ±5 V power supply (not included)
• 10+ years of operation life

Applications:
•OEM integration for:
*Optical Networks
*Research and Development
*RF over Fiber
•Pulse Amplification
