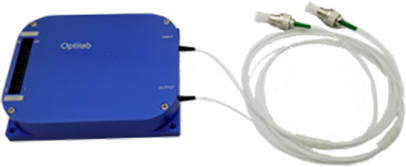

MSA Pre-Amp EDFA Module, C-band

The Optilab EDFA-PA-MSA is a high-gain pre-amplifier module in a multiple source agreement footprint housing. It is an easy-to-use and cost-efficient solution for photonic subsystems, OEM integration, and fiber optic system integration. Using a high gain design, this pre-amp module provides over 30 dB gain with a 4.5 dB noise figure, good for input power level as low as -40 dBm. Software control via an a standard TTL RS-232 interface is available for status monitoring and pump current adjustments. It also features pump laser protection and alarms to ensure the reliability and safety of the device. The EDFA-PA-MSA only requires a single +5 Volt DC power supply for operation. Contact Optilab for more information.

Features:
• MSA footprint
• RS-232 standard for remote control
• Wide wavelength operation range
• 30 dB gain
• Internal Isolators
• Low noise figure
• Designed for low input level

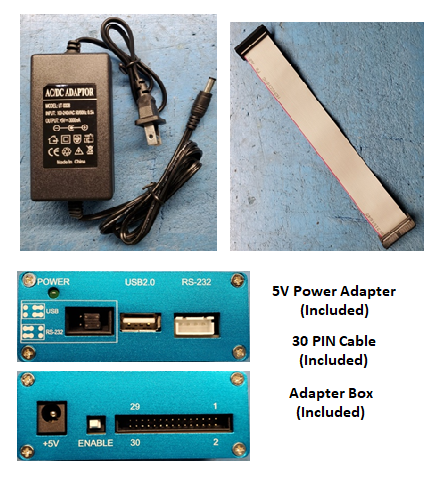

• Single 5V power supply
• 10+ years of operation life

Applications:
•Photonic subsystems
•Fiber optic link amplification
*OEM integration for
•DWDM networks
•DFC/CATV
•RFoG/PON
