C-Band MSA EDFA Module, Low Power Consumption

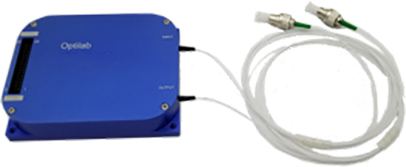

The Optilab EDFA-LC-MSA Module with low power consumption (LC) is an ideal building block for photonic subsystems and OEM system integration. Using a specifically qualified FBG stabilized, uncooled pump laser, this LC version of the EDFA module is designed for minimal electrical power consumption and thermal loading. Under normal operating conditions, this module will draw less than 1.5 W of power and it requires only a single 5 VDC power supply for operation. Pump laser protection and alarms are equipped to ensure the reliability and safety of the EDFA-LC-MSA, and status monitoring and output power level adjustment is controllable via an RS-232 interface. Contact Optilab for more information.

Features:
• Low Power Consumption
• RS-232 standard for remote control
• Wide wavelength operation range
• 30 dB gain
• MSA footprint
• Designed for low input level

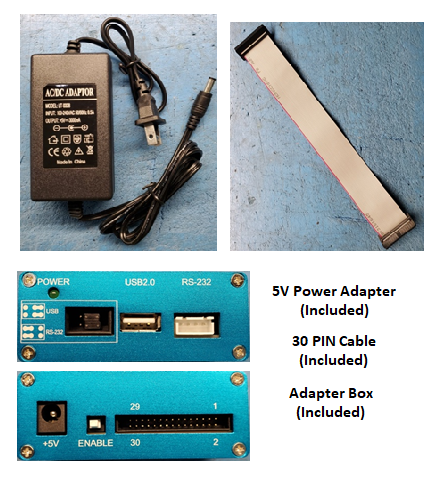

• Single +5V power supply
• 10+ years of operation life
