C-Band MSA EDFA Module, +20 dBm

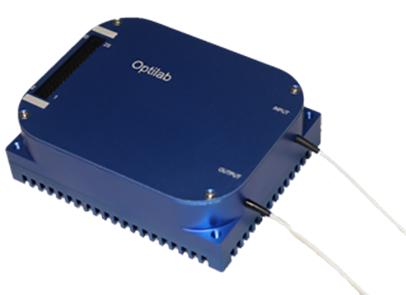

The Optilab EDFA-MP-MSA is a high-gain optical amplifier module in a multiplesource agreement footprint housing. It is an easy-to-use and cost-efficientsolution for photonic subsystems, OEM integration, and fiber optic systemintegration. Using a high gain design, this pre-amp module provides over 30 dBgain and up to +20 dBm saturation output power. Software control via an a standard TTL RS-232 interface is available for status monitoring and pump current adjustments. It also features pump laser protection and alarms to ensure the reliability and safety of the device. The EDFA-MP-MSA only requires a single +5 Volt DC power supply for operation. Contact Optilab for more information.

Features:
• MSA footprint
• RS-232 standard for remote control
• Wide wavelength operation range
• 30 dB gain
• +20 dBm Saturation Power
• Designed for In-line Amplification
• Single +5V power supply
• 10+ years of operation life
