BPR-23-Evaluation Board
BPR-23-Evaluation Board
SKU:BPR-23-EVAL
Regular price
$655.00
Regular price
Sale price
$655.00
Unit price
/
per
Couldn't load pickup availability
This is the evaluation board for the BPR-22-HS.

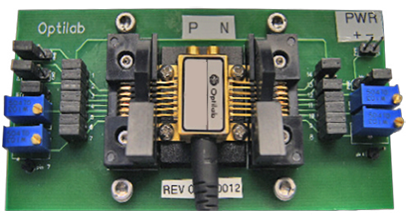

BPR-23-EVAL is used for ease of testing. It provides convenient access to all 14 pins and the data output ports. Utilizing a zero-insertion force configuration, the BPR can be mounted without the need for soldering as a user-friendly interfacing solution. The EVB is mounted on a base plate. The base plate can be further mounted to other structures using the four 1⁄4-20 threaded through holes.
The Optilab BPR-22-HS series is a linear balanced photoreceiver with a configurable bandwidth up to 23 GHz, hermetically sealed for component qualification standards. In a 14-pin mini-DIL package, BPR-22-HS. integrates a dual balanced PIN-photodiode (PD) array on a single chip and a linear Trans-Impedance Amplifier (TIA). BPR-23-EVAL can be operated in either Manual Gain Control (MGC) mode or Automatic Gain Control (AGC) mode. Featuring differential conversion gain of 1500 V/W, an inbalanced response of less than 0.5 dB and a differential output voltage swing of up to 1200 mVpp, BPR-22-HS is the idea receiver solution for DQPSK operating up to 48 Gbit/s or for low noise analog heterodyne detection. Excellent electrical and optical phase propagation is achieved by a total skew of lower than 5 ps between the balanced signal paths.
BPR-23-EVAL is used for ease of testing. It provides convenient access to all 14 pins and the data output ports. Utilizing a zero-insertion force configuration, the BPR can be mounted without the need for soldering as a user-friendly interfacing solution. The EVB is mounted on a base plate. The base plate can be further mounted to other structures using the four 1⁄4-20 threaded through holes.
The Optilab BPR-22-HS series is a linear balanced photoreceiver with a configurable bandwidth up to 23 GHz, hermetically sealed for component qualification standards. In a 14-pin mini-DIL package, BPR-22-HS. integrates a dual balanced PIN-photodiode (PD) array on a single chip and a linear Trans-Impedance Amplifier (TIA). BPR-23-EVAL can be operated in either Manual Gain Control (MGC) mode or Automatic Gain Control (AGC) mode. Featuring differential conversion gain of 1500 V/W, an inbalanced response of less than 0.5 dB and a differential output voltage swing of up to 1200 mVpp, BPR-22-HS is the idea receiver solution for DQPSK operating up to 48 Gbit/s or for low noise analog heterodyne detection. Excellent electrical and optical phase propagation is achieved by a total skew of lower than 5 ps between the balanced signal paths.
