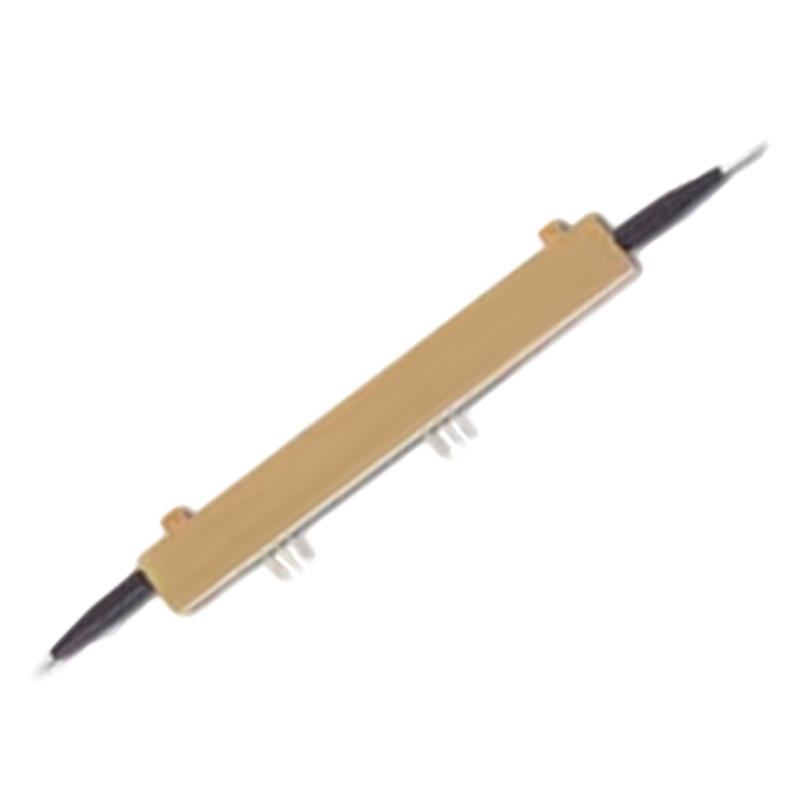

The 3 GHz bias-free intensity modulator is housed in a compact package. The bias point of the Mach Zehnder Interferometer (MZI) is set to operate at the half-intensity point (quadrature). Due to this unique design, a complicated bias control circuit is not required. The modulator provides superior signal quality over a wide range of wavelength in the C and L-bands. This modulator can be used to modulate unpolarized light source such as: tunable lasers and ASE sources. These devices have a bandwidth of >3 GHz that can be used for both analog modulation, optical pulse generation, and digital data modulation. This device is built with proton exchange waveguide, so it contains a built in polarizer. A high bandwidth PCB with SMA connector is included.

FEATURES

Bias-free Operation for Fast Transmitter Development and Manufacturing
Built-in 20 dB Variable Optical Attenuator
Single Package for Less Splicing, Lower Overall Insertion Loss and More Usable Board Space
1535 nm to 1565 nm Operation, L-band Versions Available
Low Drive Voltage, Compatible with Commercial Drivers
Low Chirp for max. Transmission Distance (1000 km min.)
Voltage-controlled Lithium Niobate Attenuator Provides Proven High Reliability

USE IN

Medium and Long-haul DWDM Transmission Requiring Dynamic Optical Power Leveling
Transmitters with Limite Component Space

Lead Time: 6 Weeks

Datasheet
