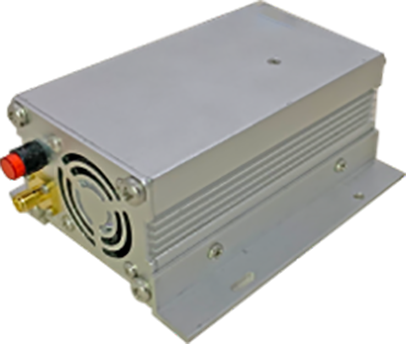

The Optilab RFA-9-M is a high gain RF amplifier module that offers cost-effective solutions for microwave and analog link. RFA-9-M features thin-film GaAs FET technology. Balanced circuitry ensures stable operation with excellent dynamic range and low return loss. The RF gain is over 35 dB in the range of operation. With its low noise, high gain and linear design, this device is also well-suited for RF analog modulated amplification in optical link, as well as 5G wireless applications. Contact Optilab for more information.

Features
• Up to 37 dB Gain
• Operational Bandwidth 3 to 9 GHz
• Excellent Gain Flatness
• Low Noise Figure 3.5 dB
• Integrated Heat Sink
• 30 dBm Saturation Output
