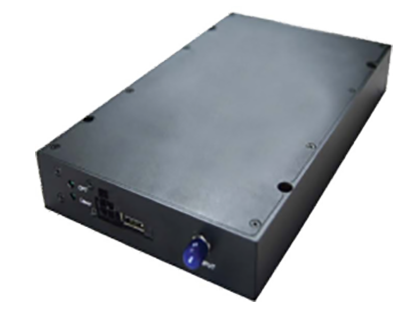

The Optilab LTX-50 is a high performance Lightwave Transmitter Module designed for analog photonics applications from DC to 50 GHz. This unit includes a 50 GHz optical intensity modulator and an Automatic Bias Control (ABC) board with four different operating modes. The integrated Tunable Wavelength Laser makes it a versatile solution for RFoF system integration. The LTX-50 requires a single 12 Volt DC power supply for operation. Contact Optilab for more information.

Features:
➤31 GHz S21 bandwidth modulator
➤1527 nm to 1567 nm LD wavelength range
➤Automatic Bias Control w/ 4 mode operation
➤Internal TWL laser up to 40 mW
➤Single 12V power supply required (not included)
➤Customizable Options:
➤Low Drive Voltage
➤PM Output
➤High Extinction Ratio (>30 dB)

Applications:
➤Analog photonics
➤43 GHz RFoF transmission
➤RF/IF signal distribution
➤Satellite communication
➤Optical communications to 50 Gb/s
➤Picosecond pulse generation
