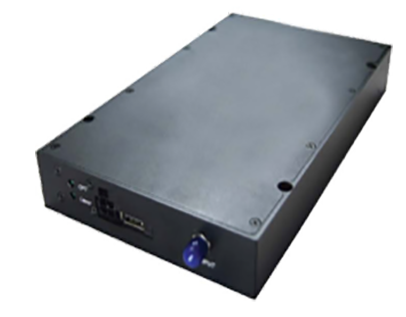

50 GHz Lightwave Transmitter Module for RFoF, LTA-50-X
50 GHz Lightwave Transmitter Module for RFoF, LTA-50-X
SKU:LTA-50-X
Regular price
$9,345.00
Regular price
Sale price
$9,345.00
Unit price
/
per
Couldn't load pickup availability
The Optilab LTA-50-X is a high performance Lightwave Transmitter Module designed for analog photonics applications up to 50 GHz. This unit includes a50 GHz optical intensity modulator and an Automatic Bias Control (ABC) board with four different operating modes. The internal laser source of device, such as optional tunable laser, narrow linewidth laser, making it a versatile solution for RFoF system integration. The LTA-50-X requires a single ±5 Volt DC power supply for operation. Contract Optilab for more information.
Features:
➤ 43 GHz S21 bandwidth modulator
➤ 1520 nm to 1610 nm wavelength range
➤ Automatic Bias Control w/ 4 mode operation
➤ Internal DFB laser up to 50 mW
➤ Customizable options:
• Low Drive Voltage
• PM Output
• High Extinction Ratio (>30 dB)
• Temperature Qualified (-55oC to +75oC)
Applications:
➤Analog photonics
➤43 GHz RFoF transmission
➤RF/IF signal distribution
➤Satellite communication
➤Optical communications to 50 Gb/s
➤Picosecond pulse generation
Features:
➤ 43 GHz S21 bandwidth modulator
➤ 1520 nm to 1610 nm wavelength range
➤ Automatic Bias Control w/ 4 mode operation
➤ Internal DFB laser up to 50 mW
➤ Customizable options:
• Low Drive Voltage
• PM Output
• High Extinction Ratio (>30 dB)
• Temperature Qualified (-55oC to +75oC)
Applications:
➤Analog photonics
➤43 GHz RFoF transmission
➤RF/IF signal distribution
➤Satellite communication
➤Optical communications to 50 Gb/s
➤Picosecond pulse generation
