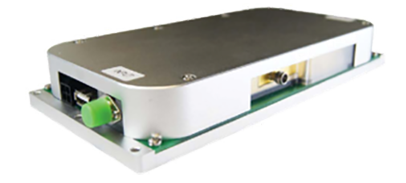

The Optilab LTB-50-X is a high performance Lightwave Transmitter Board designed for analog photonics applications from DC to 50 GHz. This unit includes a 50 GHz optical intensity modulator and an Automatic Bias Control (ABC) board with four different operating modes. The external laser source can be any polarization maintaining device, such as a tunable laser, narrow linewidth laser, making it a versatile solution for OEM-based system integration. Contact Optilab for more information.

Features:

• 43 GHz S21 bandwidth modulator • 1520 nm to 1610 nm wavelength range • Automatic Bias Control w/ 4 mode operation • Internal DFB Laser up to 50 mW

• Customizable Options: • Low Drive Voltage • PM Output • High Extinction Ratio (>30 dB) • Temperature Qualified (-550C to +75oC)

Applications:

• Satellite communication • Optical Communications to 43 Gb/s • Sub-nanosecond pulse generation • Analog photonics • 43 GHz RFoF transmission • RF/IF signal distribution
