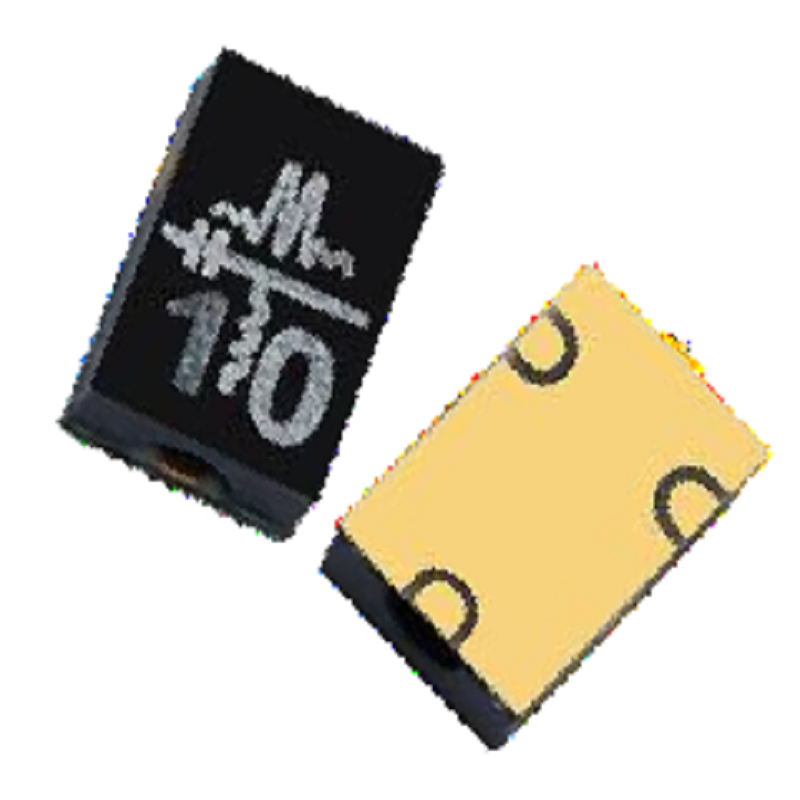

The bias tee offers the ability to apply or detect a DC voltage on a high frequency signal. Using a custom-made, resonance-free conical inductor to achieve extremely broadband performance. By minimizing the overall inductor size and using proprietary packaging techniques, the BT2003 is a superior option in terms of performance, reliability and ease-of-use when compared to cumbersome user-designed bias tees employing off-the-shelf conical inductors.

FEATURES

Frequency Range 20 MHz to 10 GHz
1 Watt RF Power Handling
Miniature Surface Mount Package
Reflow Solderable

USE IN

Wideband Amplifier
Fiber Optic Communication
Laser Driven
Optical Modulator Drive
GPS Active Antenna

Lead Time: 2-3 Weeks
Datasheet
