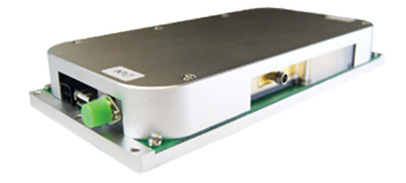

The Optilab LTB-20 is a high performance Lightwave Transmitter Board designed for analog photonics applications from DC to 20 GHz. This unit includes a 18 GHz optical intensity modulator and an Automatic Bias Control (ABC) board with four different operating modes. The integrated internal DFB laser makes it a versatile solution for RFoF system integration. The LTB-20 requires a single ±5 Volt DC power supply for operation. Contact Optilab for more information.

Features:
➤ 14 GHz S21 bandwidth modulator
➤ 1520 nm to 1610 nm wavelength range
➤ Automatic Bias Control w/ 4 mode operation
➤ Internal DFB laser up to 50 mW
➤ Customizable options:
• Low Drive Voltage
• PM Output
• High Extinction Ratio (>30 dB)

Applications:
➤Sub-nanosecond pulse generation
➤Optical communications to 25 Gb/s
➤20 GHz RFoF transmission
➤Analog photonics
➤RF/IF signal distribution
➤Satellite communication
