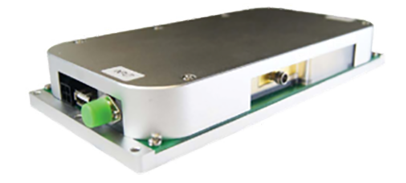

The Optilab LMB-20-1310 is a high performance 1310 nm Lightwave Modulator Board designed for analog photonics applications from DC to 20 GHz. This unit includes a 18 GHz optical intensity modulator and an Automatic Bias Control (ABC) board with four different operating modes. The external laser source can be any polarization maintaining device, such as tunable laser, narrow linewidth laser, making it a versatile solution for OEM-based system integration. The LMB-20-1310 requires a single ±5 Volt DC power supply for operation. Contact Optilab for more information.

Features
• 17 GHz S21 bandwidth modulator
• 1520 nm to 1610 nm wavelength range
• Automatic Bias Control w/ 4 mode operation
• 1310 nm Wavelength Range, 1270 nm, 1290 nm, 1330 nm Available
• Accepts external laser source via input

Applications:
•Sub-nanosecond pulse generation
•Optical communications to 25 Gb/s
•Active mode lock (PM version)
•Analog photonics
•20 GHz RFoF transmission
•RF/IF signal distribution
•Satellite communication
