20 GHz, 1310 nm Lightwave Transmitter Modulator for RFoF

20 GHz, 1310 nm Lightwave Transmitter Modulator for RFoF

SKU:LTC-20-1310

Regular price $5,455.00
Regular price Sale price $5,455.00
Sale Sold out

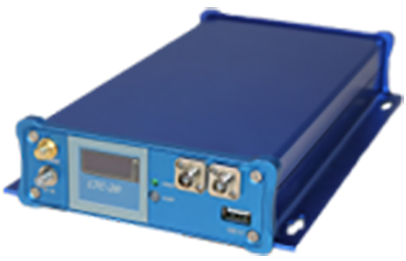

The Optilab LTC-1310-20 is a 1310 nm low noise lightwave transmitter modulator designed for analog photonics applications from DC to 20 GHz. This unit includes a 18 GHz optical intensity modulator and an Automatic Bias Control (ABC) board with four different operating modes. The external laser source can be any polarization maintaining device, such as tunable laser, narrow linewidth laser, making it a versatile solution for RFoF system integration. Contact Optilab for more information.

Features:

• 1310 nm Wavelength Range, 1270 nm, 1290 nm, 1330 nm Available • 18 GHz S21 Bandwidth Modulator • Automatic Bias Control w/4 Mode Operation • Internal DFB Laser up to 100 mW • Zero Dispersion Operation • Low Drive Voltage • PM Output Available • High Extinction Ratio (> 30 dB) • Temp. Qualified (-55℃ to +75℃)

Applications:
• Sub-nanosecond Pulse Generation • Optical Communications to 25 Gb/s • 20 GHz RFoF Transmission • Analog Photonics • RF/IF Signal Distribution • Satellite Communication
