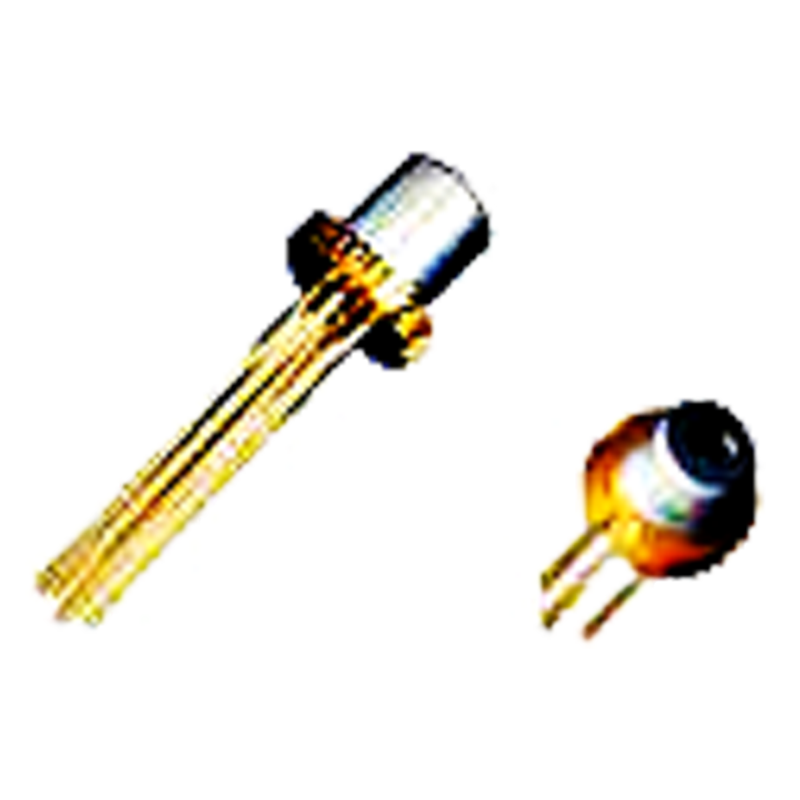

The CWDM (Aspherical Lens) TO LD laser diodes are uncooled multi-quantum-well DFB (Distributed Feedback) laser diodes for 2.5 Gbps and 10 Gbps transmission at 1310 nm/1490 nm/1550 nm. The laser diodes are packaged in a standard TO56 coaxial package with a photodiode for optical power monitor. Among these laser diodes, four products at 1270 nm, 1290 nm, 1310 nm and 1330 nm are suitable for 10 Gbps transmission. The products are Telcordia GR-468 qualified, and in compliance with RoHS directives.

FEATURES

CWDM Band Wavelengths
Low Threshold and Low Operating Current
High Efficiency and High Output Power
Wide Operation Temperature Range
High Reliability
TO56 Standard Package
Reliability: Telcordia GR-468. RoHS

USE IN

2.5/10 Gbps Fiberoptic Transmission
Optical Communication Transceivers
Storage Area Networks
Fiber Sensors
Fiberoptic Test and Measurement

Lead Time: 3-4 Weeks
Datasheet
