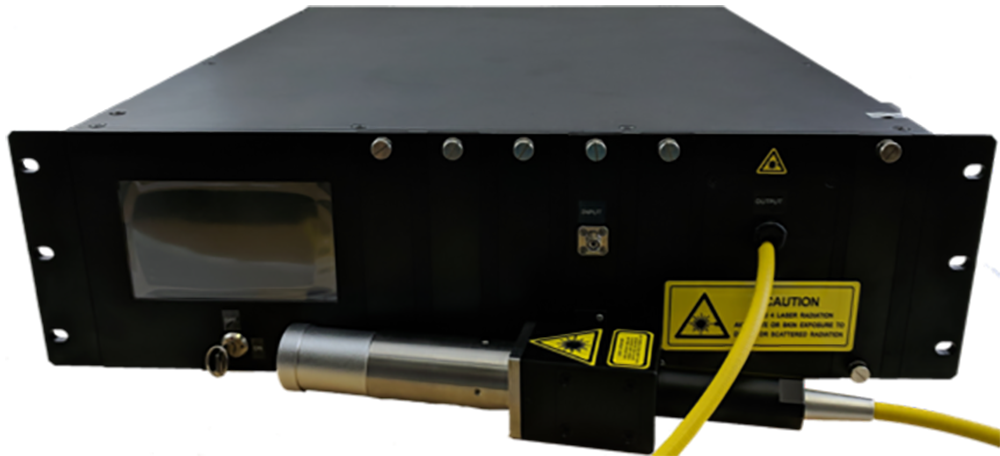

The Optilab NPL-1550-37-R is a nanosecond pulsed, high power optical light source ideal for LIDAR system development and applications. Housed in a fully integrated unit in the MOPA configuration, which contains a pulsed narrow linewidth DFB laser as the Master Oscillator (MO), and a dual stage 37 dBm EDFA as the Power Amplifier (PA). The NPL-1550-37-R provides up to 37 dBm (5 W) CW optical power in the 1543 – 1570 nm wavelength region in a compact design, either for OEM integration or as a stand alone source with inclusive power supply. Laser output pulse width and repetition rate can be programmed with internal settings, or alternatively can be controlled via an external electrical trigger. The pulsed output can be transmitted via fiber
pigtail or high power collimator,
Contact Optilab for more information@ 602-343-1496

Features:
➤ MOPA configuration
➤ Laser wavelength: 1543 nm to 1570 nm
➤ Mid-Stage ASE Filtering
➤ 37 dBm Dual Stage Power Amplifier
➤ Pulse energy: up to100 μJ
➤ Pulse width: 2 ns to 1000 ns
➤ Pulse repetition rate: 100 Hz to 1 MHz
➤ LCD and RS-232 monitor and control interface
➤ Collimator Output (optional)
