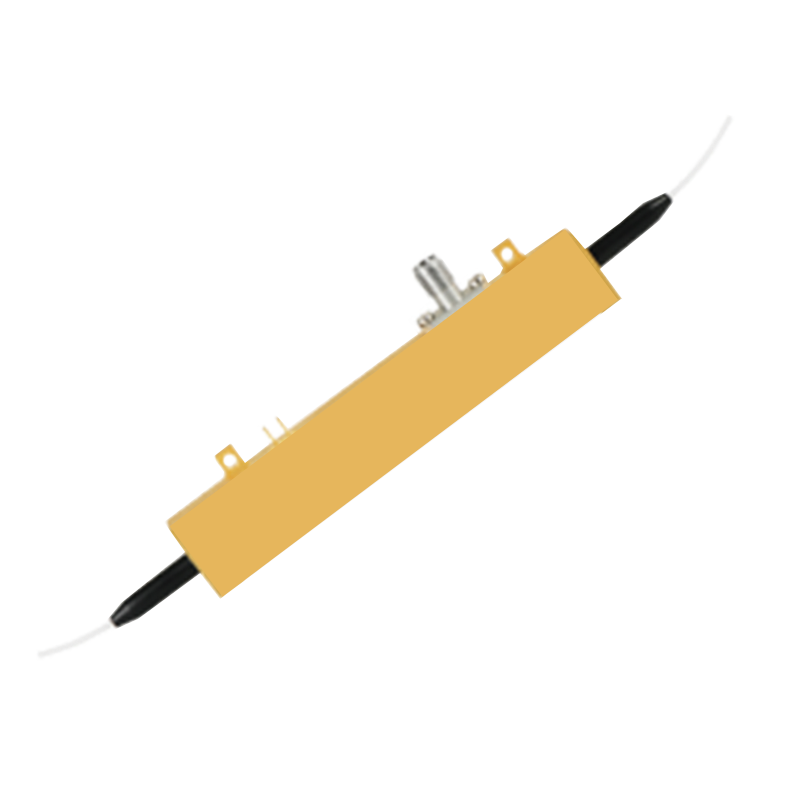

The IM-1550-20-A intensity modulator is designed for TDM and WDM 20 Gb/s transmission and can also be incorporated for analog modulation of up to 20 GHz for satellite links, antennae remoting, and RF over fiber. It is a hands-on bias-stabilized lithium modulator that proves to be extremely stable for long periods of time, and features excellent stability in a biased circuit, operating from 1530 nm to 1610 nm. It has an excellent operating temperature tolerance ranging from -30 ℃ to +75 ℃, and its low insertion loss provides for its maximum transmission power. The IM-1550-20-A uses a Polarization Maintaining (PM) input fiber and a Single Mode (SM) output fiber. It features separate RF and bias ports.

FEATURES

1530 nm to 1610 nm Operating Wavelength
Wide Operating Temp. Range (-30 °C to +60 °C)
Low Insertion Loss
Useful Bandwidth Up to 20 GHz
Excellent Stability in Biased Circuit

USE IN

TDM and WDM Up to 25 Gb/s
Analog Transmission Up to 20 GHz
Satellite Link
Antenna Remote
RF over Fiber

Lead Time: 3-4 Weeks
Datasheet
