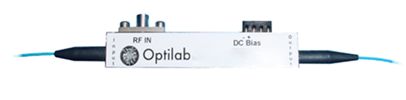

1550 nm, 20 GHz Compact Intensity Modulator, PM Output

The Optilab IMC-1550-20-PM Intensity Modulator is designed for TDM and WDM up to 25 Gb/s transmission, and can also be incorporated for analog modulation of up to 15 GHz for satellite links, antennae remoting, and RF over Fiber. It is a hands-on bias-stabilized lithium modulator with excellent stability in a biased circuit, operating from 1530 nm to 1610 nm. It has an operating temperature tolerance ranging from -30 ºC to +75 ºC, and superior insertion loss provides for its maximum transmission power. The IMC-1550-20-PM uses a Polarization Maintaining (PM) input and output fiber, and features separate RF and bias ports. Contact Optilab for more information.

Features
➤ Excellent stability in a biased circuit
➤ Polarization Maintaining output
➤ 1530 nm to 1610 nm operating wavelength
➤ Low insertion loss
➤ Useful bandwidth up to 15 GHz
➤ Wide operating temp. range of -30 ºC to +75 ºC, Extended range available

Datasheet

Available Accessories
STEP
SLDPRT
Parasolid
