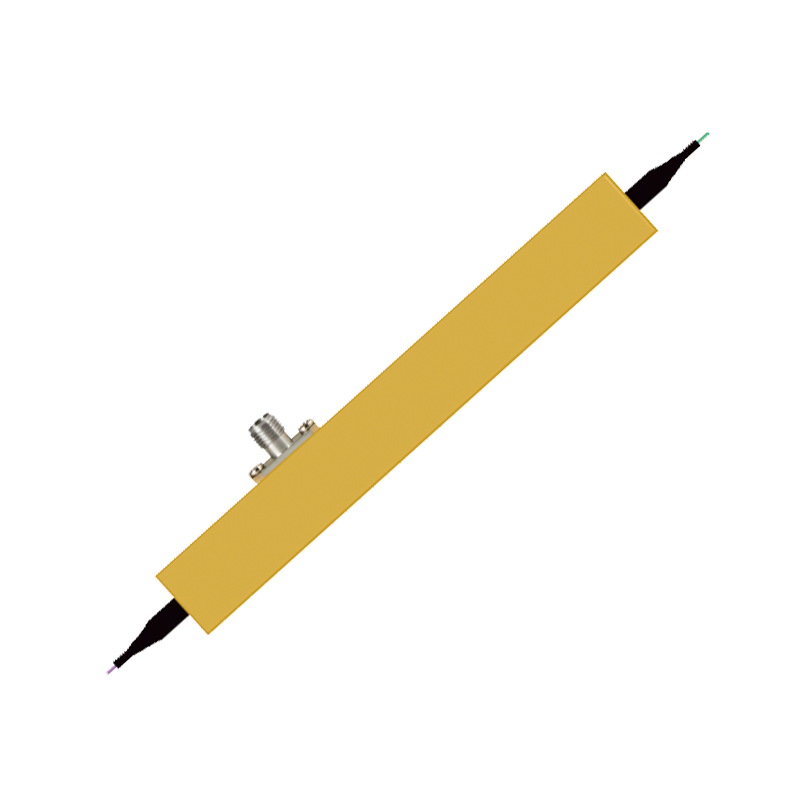

IM-1550-12-B is a 12 GHz intensity modulator, incorporating a zero-chirp design for ultra long haul transmission. Covering full C-band and L-band, it can be used for any ITU grid DWDM channel, with exceptional E/O bandwidth and a highly linear transfer function. Applications include digital transmission up to 15 Gb/s, analog RFoF transmission to 12 GHz, optical pulse generation, and microwave optical link. The IM-1550-12-B operates with standard drive voltage, making it compatible with a wide variety of modulator drivers, and a diplexed bias port allows the modulator to operate at specific points of the transfer function. Supplied in a hermetic package, qualified to TelcordiaTM GR-468-CORE, this product assures high reliability and performance at all times.

FEATURES

SM Output Port
Standard Drive Voltage
1530 nm to 1610 nm Operating Wavelength
Low Insertion Loss
Useful Bandwidth Up to 12 GHz
High Extinction Ratio
Zero Chirp Design

USE IN

OC192 C-band & L-band
TDM & WDM Up to 15 Gb/s
Analog Transmission Up to 12 GHz
Antenna Remote
RF over Fiber
Pulse Generation
Satellite Link

Lead Time: 3-4 Weeks
