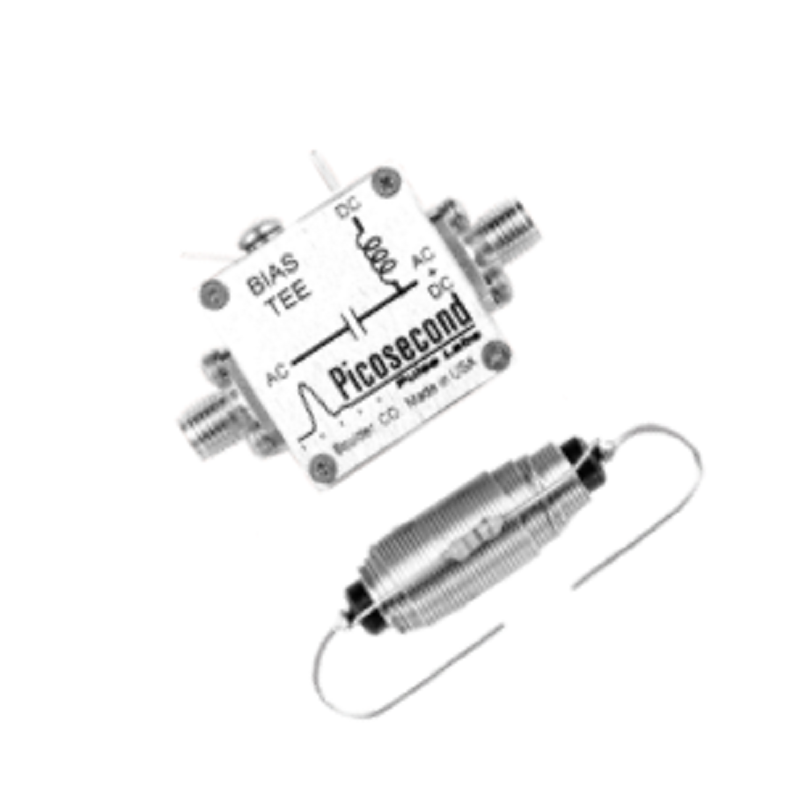

The bias tee is a broadband, coaxial bias insertion tee and DC blocking capacitor. It was designed to have a very low cutoff frequency of only 5 kHz. It passes fast rise pulses with a minimum of waveform distortion. Its rise time is 23 ps. The frequency response is very flat, and the -3 dB bandwidth extends from 5 kHz to 15 GHz. It is supplied with a 1 mH choke and terminal strip for connection to the DC bias.

FEATURES

Low Insertion Loss
High Power
Non-Resonant
Compact Size

USE IN

Wideband Amplifier
Fiber Optic Communication
Laser Driven
Optical Modulator Drive
GPS Active Antenna

Lead Time: 2-3 Weeks
