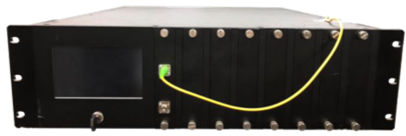

15 dB Gain Raman Amplifier, Rackmount, L-Band, 1560nm to 1605nm

15 dB Gain Raman Amplifier, Rackmount, L-Band, 1560nm to 1605nm

SKU:RA-L2-15-R

Regular price $15,525.00
Regular price Sale price $15,525.00
Sale Sold out

Optilab Raman Amplifier Rackmount Units are designed for distributed Raman amplification in L-Band. The RA-L2-15-R unit provides over 15 dB On/Off gain flattened amplification from 1560nm to 1605nm, thus can support up to 50 DWDM channels. Each of the two pump channels is configured with two high power pump laser diodes and one polarization beam combiner (PBC). The pump wavelengths are 1462nm and 1490nm. The unit includes micro-controller based laser current control circuitry for enhanced stability and reliability. RA-L2-15-R is an ideal amplifier for high channel count DWDM 40G/100G transmission and fiber sensor systems. It is equipped with LCD touch screen and LabVIEW (TM) remote user interface for easy operation. Contact Optilab for more information.

Features:
• 1560 nm - 1605 nm
• Over 15 dB On/Off Gain
• Gain flatness of < ±1.5 dB
• Excellent Stability
• Up to 50 DWDM Channels
• Touch Screen LCD & USB Interface

Use In:
• Long Haul/Ultra-Long Haul Systems
• Long Repeaterless Links
• Low Latency Links
• Multi-Channel DWDM Networks
• 40/100 Gbps Transmission
