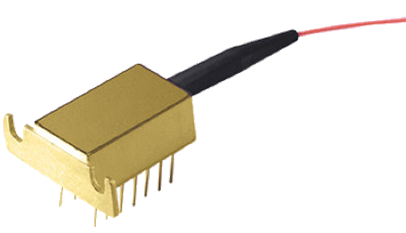

The Optilab LD-1310P-DL is a high-power pulse laser diode has been designed as a light source for pulsed fiber lasers and CW applications. It is mostly utilized in combination with an external optical modulator, such as a Mach-Zehnder Interferometer (MZI) modulator. It output powers up to 150 mW. Wavelength stabilized high power single mode laser module has been designed as a CW light source for narrow bandwidth fiber laser and direct frequency conversion applications. Contact Optilab for more information.

Features:
• Center wavelength: 1310 +/- 10 nm
• High Output power, up to 150 mW at IFP = 400mA
• Pulse Width : 10 μs
• Built in isolator
• Built in TEC for wavelength tuning

Application
• LiDAR
• Fiber laser systems
• Free space communications
• Frequency conversion
• Optical spectroscopy
