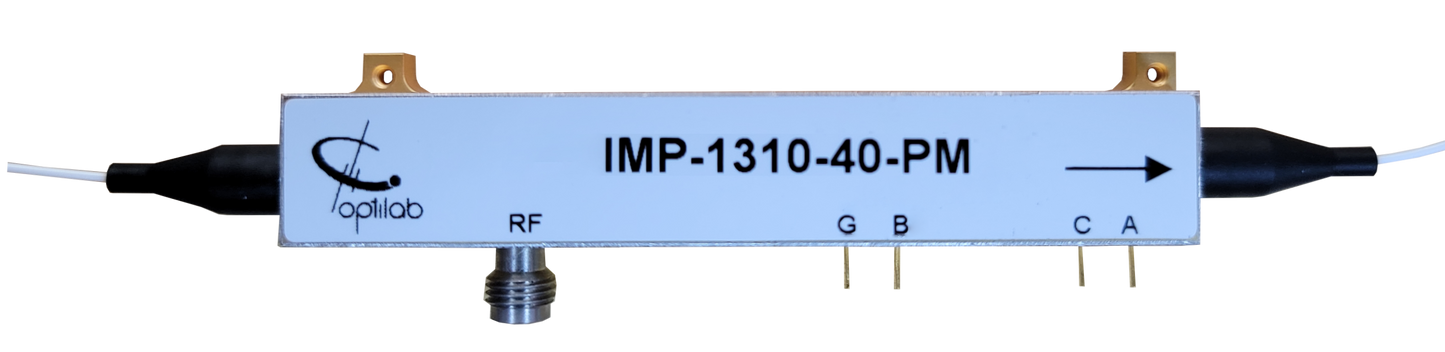

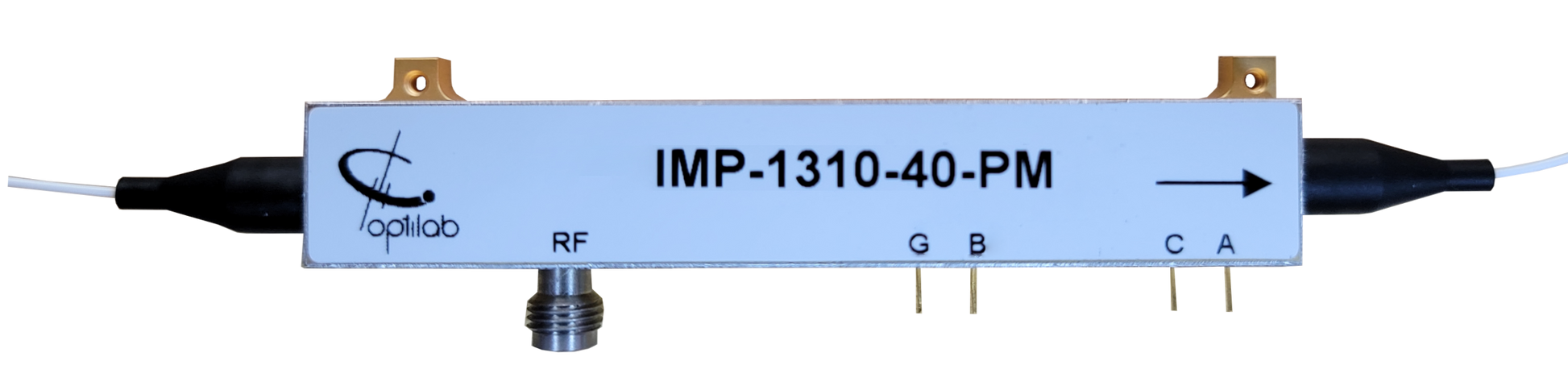

The Optilab IMP-1310-40-PM is a Intensity Modulator that is manufactured with Annealed Proton Exchange(APE) process, it features a zero-chirp design and Polarization Maintaining(PM) fiber output. IMP-1310-40-PM features 17GHz E/O bandwidth, a highly linear transfer function and excellent extinction ratio. Applications include digital transmission up to 40 Gb/s, analog RFoF transmission to 30 GHz, optical pulse generation, mode-locked fiber laser and microwave optical link. The IMP-1310-40-PM is compatible with a wide variety of modulator drivers, and a separate bias port allows the modulator to operate at specific points of the transfer function. The IMP-1310-40-PM Modulator is designed for external modulation of 1310 nm laser up to 30 GHz or 40 Gb/s. It is also applicable for pulse generation for Master Oscillator Power Amplifier(MOPA) configuration. Due to proprietary APE technology, IMP-1310-40-PM can handle input power beyond 100mW and is a bias-stabilized modulator. It has a wide operating temperature tolerance ranging from -25ºC to +70ºC. Contact Optilab for more information.

Features:

• PM fiber output
• High input power
• Zero chirp design
• Internal PD option
• 1270-1330nm operating wavelength
• High Extinction Ratio (HER) Available
• Temperature range of -25oC to 70oC

Applications:

• RF over fiber
• Pulse generation
• MOPA
• Analog modulation up to 35 GHz
• Active mode locked laser
• Satellite Link
