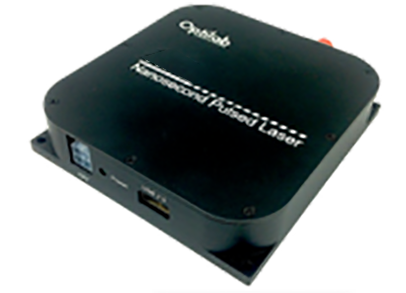

The Optilab NPL-CWDM-M is a variable pulsed CWDM DFB laser source, a building block ideal for MOPA, LIDAR, OTDR laser systems development and applications. This fully integrated compact module contains a Distributed Feedback (DFB) laser and variable nanosecond pulse generation circuits. The NPL-CWDM-M provides 10 mW optical peak power in 1550 nm wavelength region, with a programmable pulse width from 10 ns to 1000 ns, and a selectable pulse repetition rate from 100 Hz to 1 MHz. The optical pulse generation can alternatively be controlled via an external electrical trigger. In a compact design, NPL-CWDM-M is applicable for OEM integration or as a stand alone pulsed laser source. The NPL-CWDM-XXXX-M requires a single ±5 Volt DC power supply for operation. Contact Optilab for more information.

Features:
➤18 CWDM Wavelengths
➤1270 nm - 1610 nm
➤Requires no external pulse generator
➤Pulse width: 10 ns to 1000 ns, programmable
➤Selectable repetition rate: 100 Hz to 1 MHz
➤Up to 10 mW peak power
➤RS-232 via USB control interface

Applications:
➤Master Oscillator (MO) for MOPA
➤Pulsed light source for LiDAR
➤Laser source for OTDR
➤Pulse based optical instrumentation
➤Raman distributed sensing
