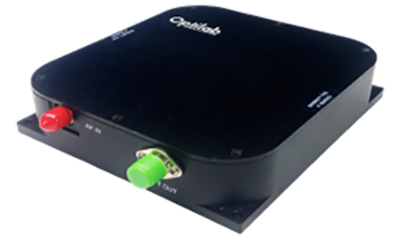

12 GHz Low Drive Voltage Lightwave Transmitter, EAM Module

12 GHz Low Drive Voltage Lightwave Transmitter, EAM Module

LT-12-E-M

$3,313.00
$3,313.00
Sale Sold out
With Power Supply
The Optilab LT-12-E-M Lightwave Transmitters (LT) utilize a linear, Electro Absorption Modulator (EAM) designed for RF over Fiber, antenna remoting and broadband RF transmission over optical fiber. This easy to drive module incorporates a low noise, 1550 nm distributed feedback (DFB) laser diode as a Continuous Wave (CW) light source. The input RF signal is applied to EAM directly for E/O conversion. The compact, cost- effective transmitter design provides a high spurious-free dynamic range and high modulation bandwidth. LT-12-E-M can be paired with PR-12-M or PD-30 for 12 GHz RFoF link applications. The LT-12-E-M requires a single ±5 Volt DC power supply for operation. Contact Optilab for more information.

Features:
➤ 12 GHz operation bandwidth
➤ Low RF drive voltage
➤ High dynamic range
➤ Built in 10 GHz Bias tee
➤ USB 2.0 /RS-485 monitor interface
➤ Labview driver included

Applications:
➤ 12 GHz RF over Fiber
➤ RF/IF signal distribution
➤ Satellite antenna signal distribution
➤ Broadband delay-line and signal processing
➤ Radar system link
➤ Phased and interferometric array antenna

Datasheet
