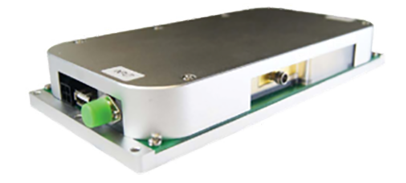

The Optilab LTB-12 is a high performance Lightwave Transmitter Board designed for analog photonics applications from DC to 12 GHz. This unit includes a 10 GHz optical intensity modulator and an Automatic Bias Control (ABC) board with four different operating modes. The integrated internal DFB laser makes it a versatile solution for RFoF system integration. Contact Optilab for more information.

Features
➤ 8 GHz S21 bandwidth modulator
➤ 1520 nm to 1610 nm wavelength range
➤ Automatic Bias Control w/ 4 mode operation
➤ Internal DFB laser up to 50 mW
➤ Single 5 V power supply required (Not Included)
➤ Customizable options:
• Low Drive Voltage
• PM Output
• High Extinction Ratio (>30 dB)
• Temperature Qualified (-55 °C to +75 °C)

Datasheet
