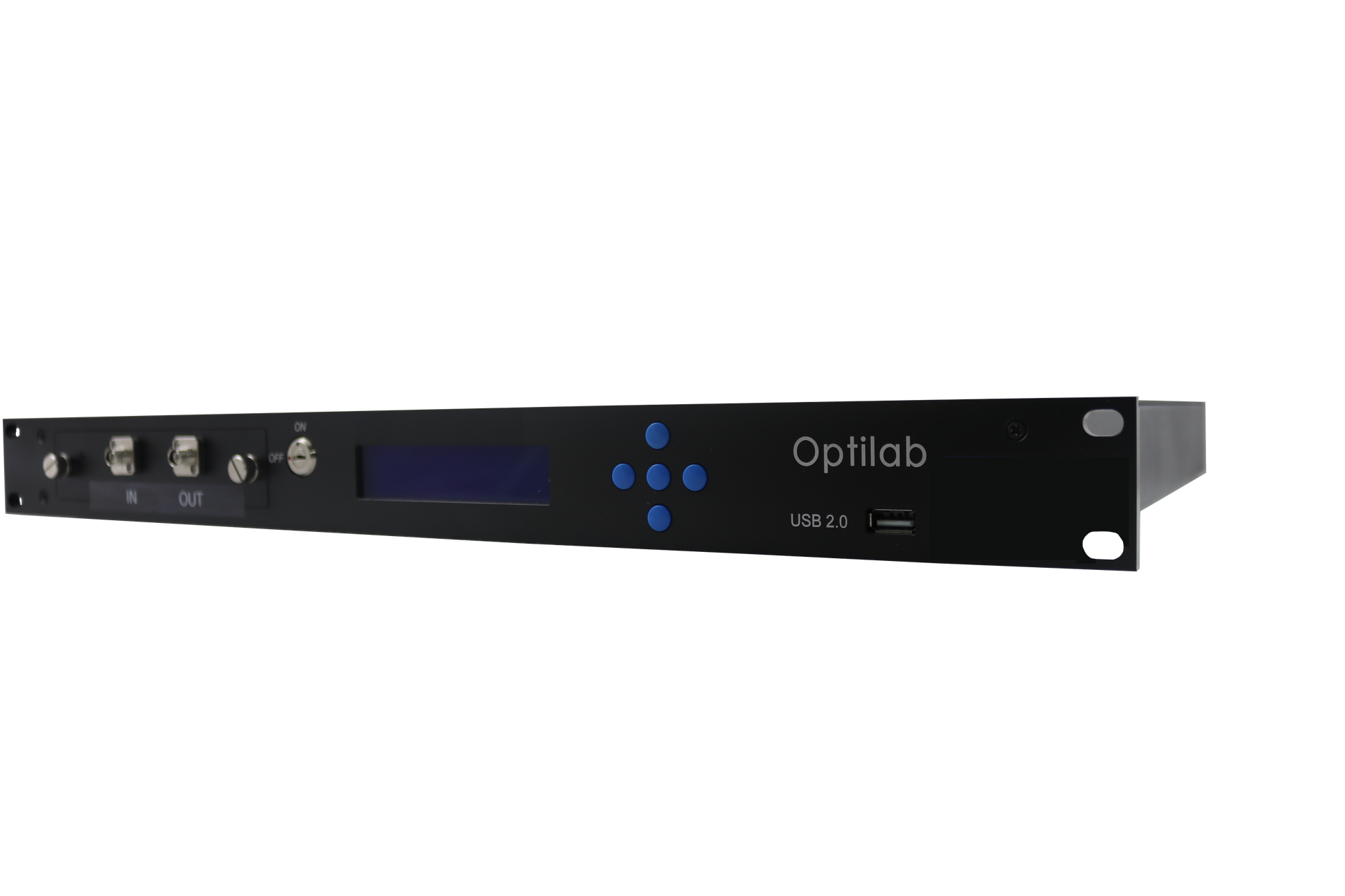

The Optilab PGL-1064-PM-R is a programmable laser that produces picosecond pulses with pulse generator integrated. It functions as a seed pulse generator for Master Oscillator Power Amplifiers (MOPA). The PGL-1064- PM is designed to produce < 100 ps widths and corresponding repetition rates up to 100 MHz from the user’s electrical pulse generator. It features a high Extinction Ratio (ER) Mach-Zehnder Interferometer (MZI) optical modulator with a high pulse contrast of -30 dB. The PGL-1064-PM-R consists of a narrow-line-width, ultra stable, External Cavity Laser Diode (ECLD), centered at 1064 nm transmission wavelength. The External Cavity Laser (ECL) operates under Continuous Wave (CW) mode, modulated by a high speed modulator rise time of less than 35 ps. The Automatic Bias Controller (ABC) board is used to properly maintain the bias point of the optical modulator and ensure jitter free, ultra-fast pulse generation. It features PM fiber for polarization maintaining, and is available with an optional PM EDFA to boost peak pulse power. The laser system is equipped with a standard remote control interface (RS-232) and an LCD display screen for easy user interface, accessible through a front panel adjustment knob. Contact Optilab for more information.

Features:

• Fixed Pulse Width of 100 ps • High speed optical modulator w/ <35 ps rise time • 1064 nm Wavelength External Cavity Laser • High Pulse Contrast of -30 dB • Uses external electrical input • Optional high power PM EDFA • Collimated output available

Applications:

• Picosecond pulse generator • Research & Development • Testing & Measurement • Master Oscillator Power Amplifier (MOPA)
