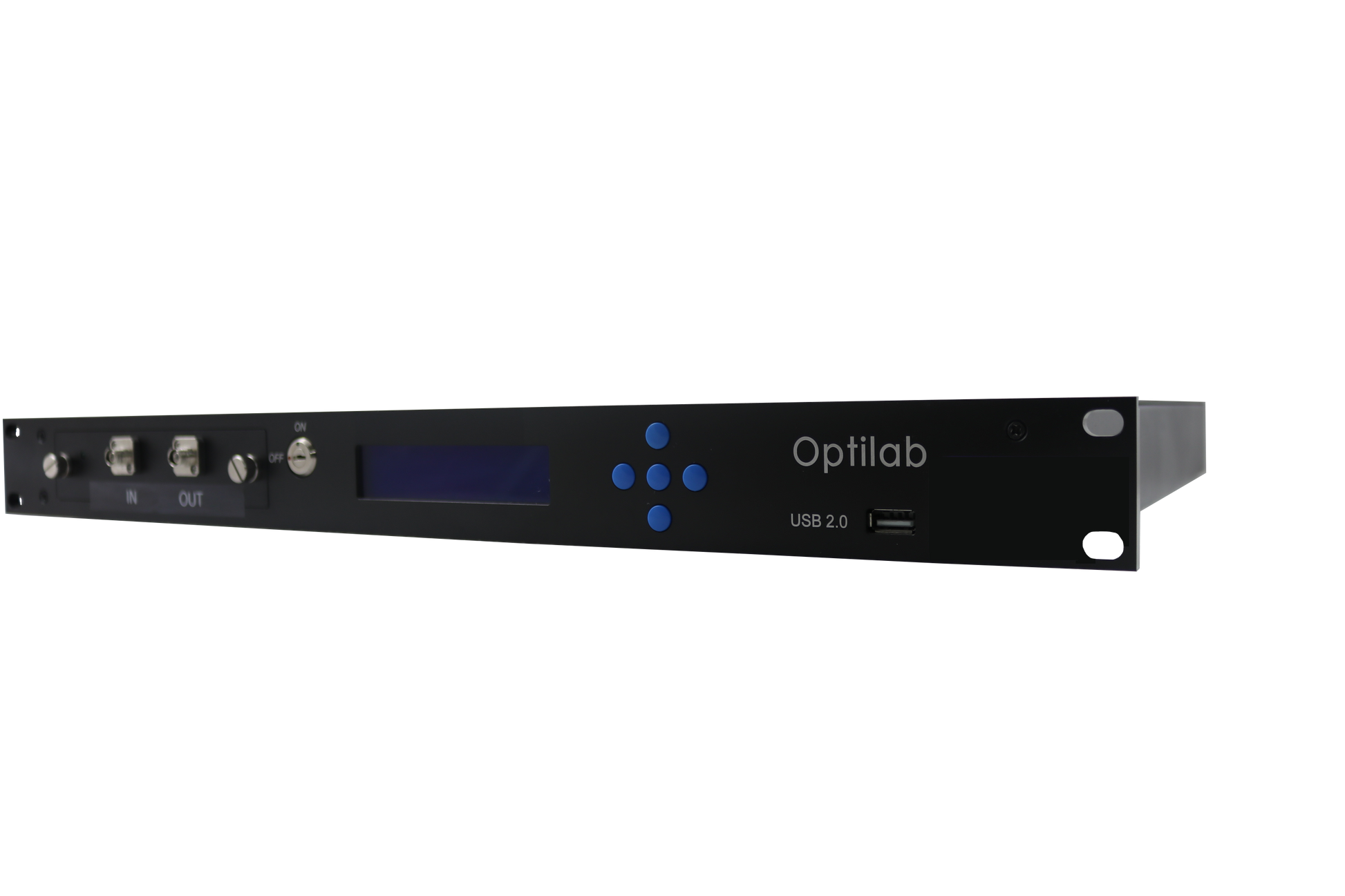

The Optilab PPL-1064-R is a programmable laser that produces picosecond pulses with electrical input pulses. It functions as a seed pulse generator for Master Oscillator Power Amplifiers (MOPA). The PPL-1064-R is designed to produce < 100 ps widths and corresponding repetition rates up to 100 MHz from the user’s electrical pulse generator. It features a high Extinction Ratio (ER) Mach-Zehnder Interferometer (MZI) optical modulator with a high pulse contrast of -30 dB. The PPL-1064-R consists of a narrow-line-width, ultra stable, External Cavity Laser Diode (ECLD), centered at 1064 nm transmission wavelength. The External Cavity Laser (ECL) operates under Continuous Wave (CW) mode, modulated by a high speed modulator rise time of less than 35 ps. The Automatic Bias Controller (ABC) board is used to properly maintain the bias point of the optical modulator and ensure jitter free, ultra-fast pulse generation. The laser system is equipped with a standard remote control interface (RS-232) and an LCD display screen for easy user interface, accessible through a front panel adjustment knob. Contact Optilab for more information.

Features:

• Programmable pulsewidth & repetition rate
• 1064 nm Wavelength External Cavity Laser
• High speed optical modulator w/ < 35 ps rise time
• Optional PM high power collimator
• High pulse contrast of -30 dB
• Generate short pulse of < 100 ps
• Uses external electrical input
• Optional high power PM YDFA
• Collimated output available

Applications:

• Master Oscillator Power Amplifier (MOPA)
• Picosecond pulse generator
• Research & Development
• Test & Measurement
