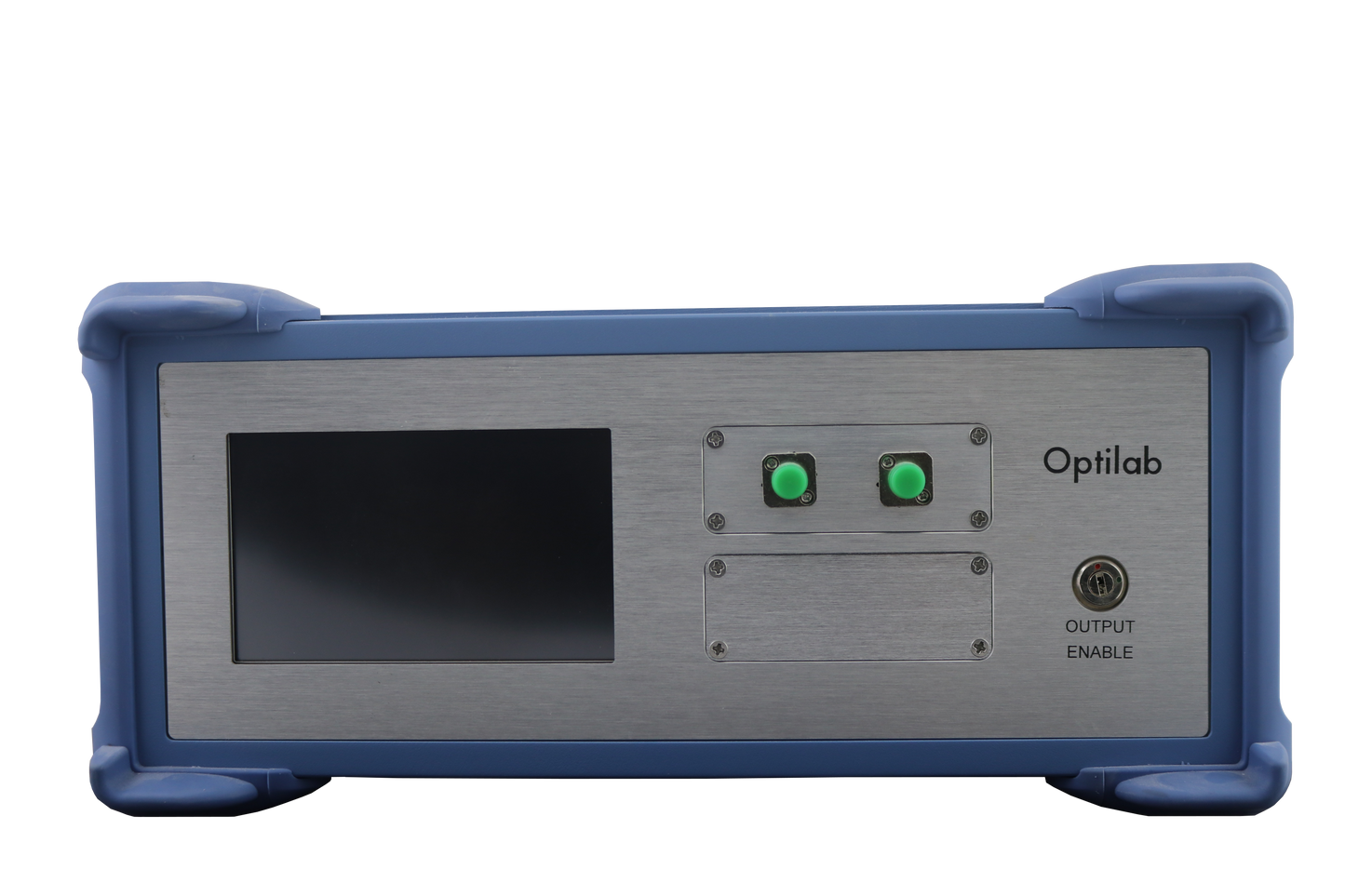

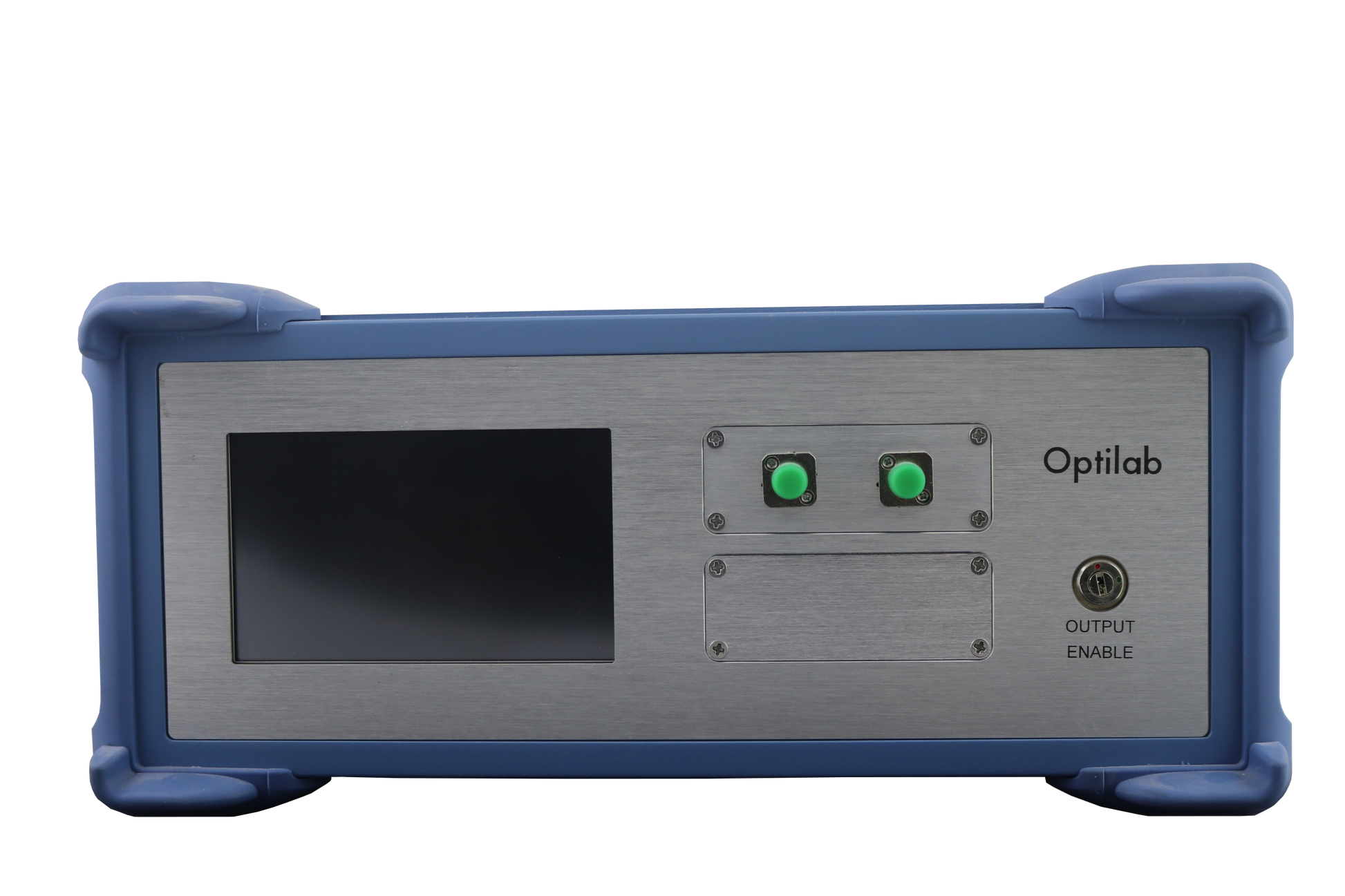

The Optilab NPL-1064-27-PM-B is a variable, pulsed high power laser source, a building block ideal for MOPA, LIDAR, OTDR laser systems development and applications. This fully integrated compact module contains a Distributed Feedback (DFB) laser and built-in optical amplifier stage, and a variable nanosecond pulse generation circuits. The NPL-1064-27-PM-B provides up to 200 mW optical peak power in 1064 nm wavelength region, with a programmable pulse width from 10 ns to 1000 ns, and a selectable pulse repetition rate from 100 Hz to 1 MHz The optical pulse generation can alternatively be controlled via an external electrical trigger. In a compact design, NPL-CWDM-M is applicable for OEM integration or as a stand alone pulsed laser source. Contact Optilab for more information.

Features:
• 1064 nm Operating Wavelength
• Requires no external pulse generator
• Pulse width 10 ns to 1000 ns, programmable
• Selectable repetition rate: 100Hz to 1MHz
• 100 mW peak power
• RS-232 via USB Control Interface

Applications:
• Master Oscillator (MO) for MOPA
• Pulsed Light Source for LIDAR
• Laser Source for OTDR
• Pulse Based Optical Instrumentation
• Ramen Distributed Sensing
